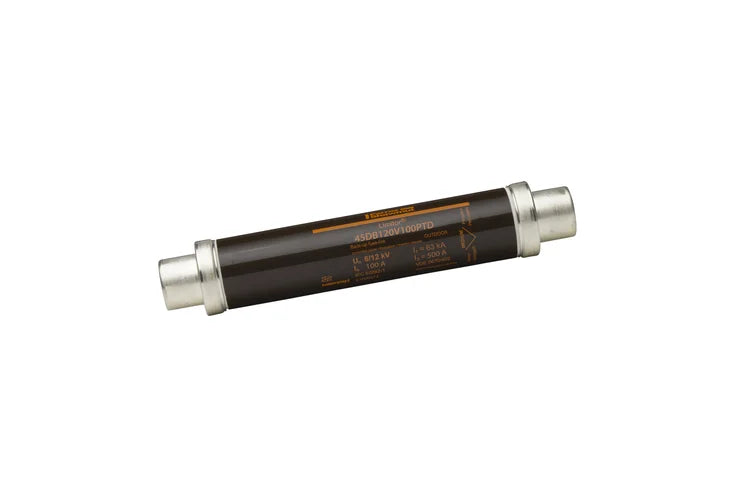

C1000272 - 45DB120V100PTD
DESCRIPTION
High Voltage DIN Back-up fuse for Transformer Limitor® VDE T402 12kVAC IEC 100A d65mm, L292mm With Thermal Striker 80N
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades. Limitor®-PTD HV fuse-links are back-up fuses as defined in the standards: IEC 60282-1 and VDE 0670 T402 and dedicated to protect transformers in combination with air or gas insulated switchgear against the thermal and dynamic effects of short-circuit currents. To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic. Limitor®-PTD HV fuse-links are perfectly designed to be used in combination with HV switchgear. Siemens and Ormazabal recommend Limitor®-PTD HV fuses to be used in their gas-insulated switchgear.
| Specification | Value |
|---|---|
| Rated Voltage AC | 12 kV |
| Ampere Rating | 100 A |
| Fuse Size | d=65mm L=292mm |
| Mounting | Clip |
| Sell Pack Quantity | 1 EA |
| Product Weight | 2.2 kg |
| Sell Pack Weight | 2.2 kg |
| Product Group | High Voltage IEC Fuses |
| RoHS Compliant | Yes |
