D227588 - FR72V63
DESCRIPTION

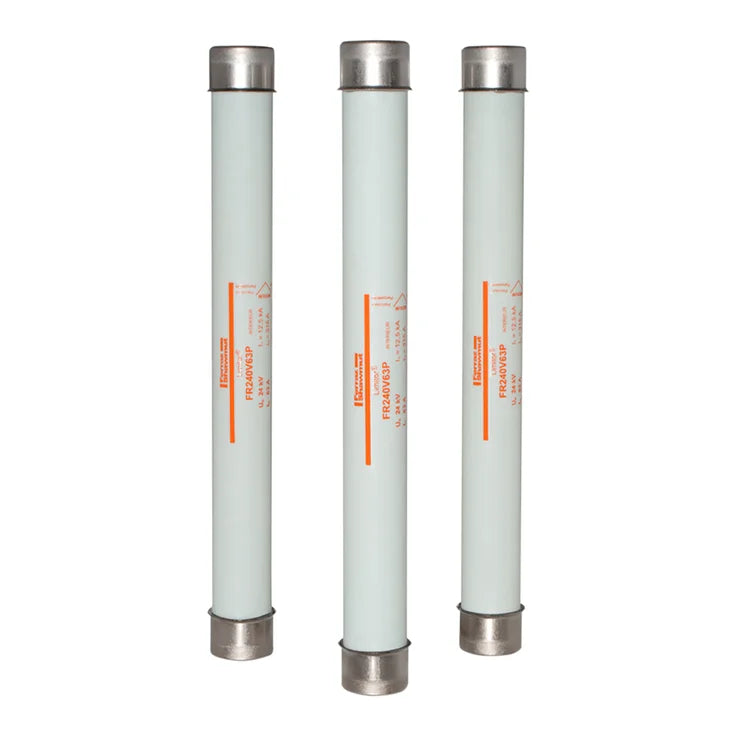

High Voltage UTE Back-up fuse Limitor® 7.2kVAC IEC 63A d55mm, L520mm
FR-type fuses are designed to protect HV/LV power distribution transformers. Designed to be coordinated with other equipment, these current limiting fuse-links interrupt fault currents before they reach their peak. The fault current is interrupted inside the fuse-link body and although this is very fast, there is no sign of it outside. The 24kV fuses were specially designed with very low power losses, for use in SF6-insulated or compact air-insulated fused switchgear combinations The main elements in these fuses are: a barrel of class F insulating synthetic material, nickel plated aluminium end contacts, pure silver fuse elements and a composite material fuse element holder to withstand high temperatures. Thanks to their structure, based on a synthetic material, FR fuse-links are the perfect answer to the stress involved in use inside HV bays and fuse-link chambers.
| Specification | Value |
|---|---|
| Rated Voltage AC | 7.2 kV |
| Ampere Rating | 63 A |
| Fuse Size | d=55mm L=520mm |
| Mounting | Clip |
| Sell Pack Quantity | 3 EA |
| Product Weight | 2.1 kg |
| Sell Pack Weight | 6.3 kg |
| Product Group | High Voltage IEC Fuses |
| RoHS Compliant | Yes |
