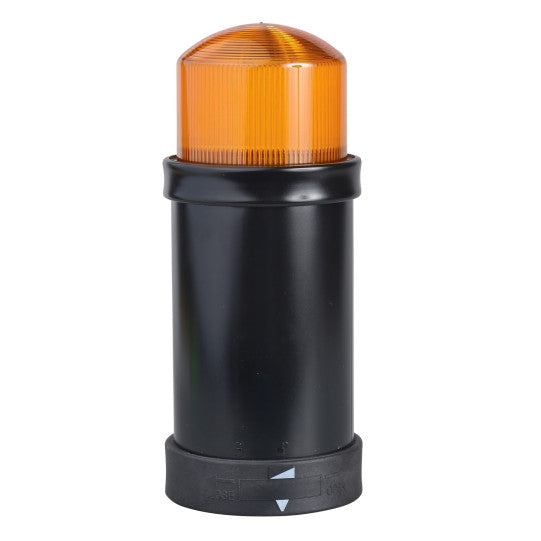

Ø 70 mm illuminated unit - flashing - orange - IP65 - 48 V - XVBC8E5
SKU : XVBC8E5
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Ø 70 mm illuminated unit - flashing - orange - IP65 - 48 V - XVBC8E5
DESCRIPTION
| Range of product: | Harmony XVB Universal |
|---|---|
| Product or component type: | Indicator bank |
| Beacon or indicator bank unit type: | Illuminated unit |
| Signalling type: | Flashing |
| Mounting diameter: | 70 mm |
| Component name: | XVBC |
| Material: | Polycarbonate |
| Light source: | Integral flash discharge tube, orange |
| Bulb type: | Flash discharge tube |
| [Us] rated supply voltage: | 48 V AC/DC |
| Flash energy: | 10 J |
| Assembly style: | Customer assembly, up to 5 units |
|---|---|
| Connections - terminals: | Screw clamp terminals, |
| [Ui] rated insulation voltage: | 250 V conforming to IEC 60947-1 |
| Nominal voltage limit: | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| Current consumption: | |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 60947-1 |
| Flashing frequency: | 1 Hz |
| Product weight: | 0.315 kg |
| Product certifications: | CCCCSA C22-2 No 14UL 508GOST |
|---|---|
| Standards: | EN/IEC 60947-5-1 |
| Protective treatment: | TC |
| Ambient air temperature for storage: | -40...70 °C |
| Electrical shock protection class: | Class I on support tube conforming to IEC 61140Class II on base unit conforming to IEC 61140 |
| IP degree of protection: | IP65 on fixing base XVBZ0. conforming to IEC 60529IP66 on base unit conforming to IEC 60529 |
| NEMA degree of protection: | NEMA 4X conforming to UL 508 (indoor) |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110838855 |
|---|
