Acti9, iCT contacteur 25A 4NO 230-240VCA 50Hz - A9C20834
SKU : A9C20834
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.

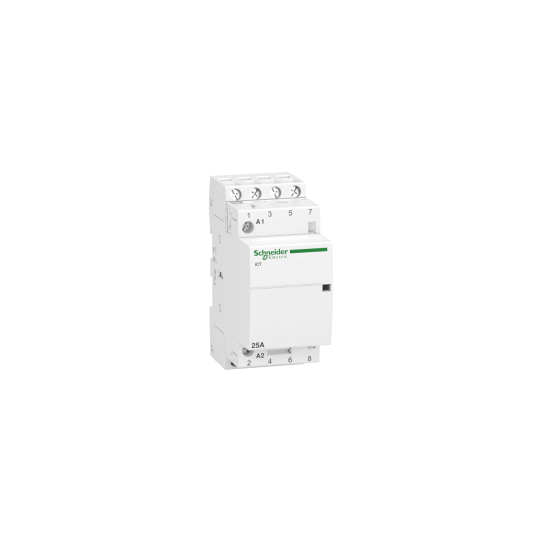

Acti9, iCT contacteur 25A 4NO230-240VCA 50Hz - A9C20834
DESCRIPTION
| Range: | Acti 9 |
|---|---|
| Product name: | Acti 9 iCT |
| Product or component type: | Contactor |
| Device short name: | ICT |
| Device application: | Motor-heating-lighting |
| Poles description: | 4P |
| Pole contact composition: | 4 NO |
| Network type: | AC |
| Utilisation category: | AC-1 conforming to EN 60947-4-1AC-3 conforming to EN 60947-4-1AC-7A conforming to EN 61095AC-7A conforming to IEC 1095AC-7B conforming to EN 61095AC-7B conforming to IEC 1095 |
| Control type: | Remote control |
| [Uc] control circuit voltage: | 220...240 V AC 50 Hz |
| [Ie] rated operational current: | 25 A AC-7A8.5 A AC-7B |
|---|---|
| Network frequency: | 50/60 Hz |
| [Ue] rated operational voltage: | 400 V AC 50 Hz |
| Maximum power: | 1.6 W 400 V AC |
| [Ui] rated insulation voltage: | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Control signal type: | Maintained |
| Switching frequency: | 100 switching operations/day |
| Local signalling: | Action indicator |
| Hold-in power consumption VA: | 4.6 VA |
| Inrush power in VA: | 34 VA |
| Mounting mode: | Clip-on |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 4 |
| Height: | 81 mm |
| Width: | 36 mm |
| Depth: | 60 mm |
| Colour: | White |
| Electrical durability: | 200000 cycles AC 50/60 Hz conforming to EN 61095200000 cycles AC 50/60 Hz conforming to IEC 1095 |
| Connections - terminals: | Control circuit |
| Tightening torque: | Control circuit |
| Product compatibility: | IACTcIACTsIATEtIACTp |
| Standards: | EN 61095IEC 1095 |
|---|---|
| Noise level: | 30 dB |
| Heat dissipation: | 1.6 W |
| IP degree of protection: | IP20 |
| Pollution degree: | 2 |
| Tropicalisation: | 2 conforming to EN 60947-4-12 conforming to EN 610952 conforming to IEC 1095 |
| Relative humidity: | 95 % (55 °C) |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -5...60 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Warranty period: | 18 months |
| Sustainable offer status: | Green Premium productRoHS (date code: YYWW) |
| Code EAN: | 3606480088599 |
|---|---|
| Contexte: |
With exclusive features, Acti 9 iCT DIN rail contactor is definitely geared to absolute safety
|
