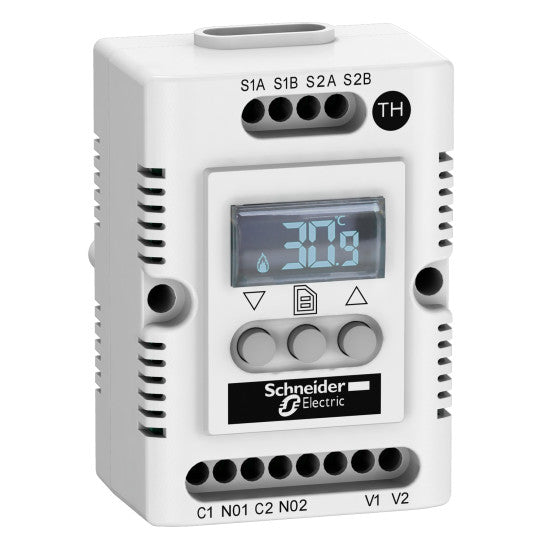

Climasys CC - Electronical thermostat 200..240V - range of temperature -40…80°C - NSYCCOTH230VID
DESCRIPTION
| Range: | ClimaSys |
|---|---|
| Product name: | ClimaSys CC |
| Product or component type: | Electronical thermostat |
| Temperature setting range: | -40...80 °C |
| Display type: | OLED screen |
| Information displayed: | Temperature in °FTemperature in °C |
| Input voltage: | 200...240 V AC |
|---|---|
| Sensor type: | Optional NTC external sensor |
| Maximum switching capacity: | 4 A 230 V AC |
| Electrical connection: | 10 terminals, clamping capacity: 2.5 mm² |
| Mounting mode: | ClippedBy screws |
| Height: | 85 mm external: |
| Width: | 56 mm external: |
| Depth: | 44 mm external: |
| Mounting location: | Cross railsOn mounting plateSpacial upright35 mm DIN rail |
| Ambient air temperature for operation: | -40...80 °C |
| Hysteresis: | 2 K programmed value |
| Number of outputs: | 2 ventilation/heating function |
| Material: | PC |
| Colour: | Light grey |
| Flame retardance: | Self-extinguishing conforming to UL94 (material V0) |
| Product certifications: | UR |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Compliant |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP2103012_V1 |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Code EAN: | 3606480152627 |
|---|
