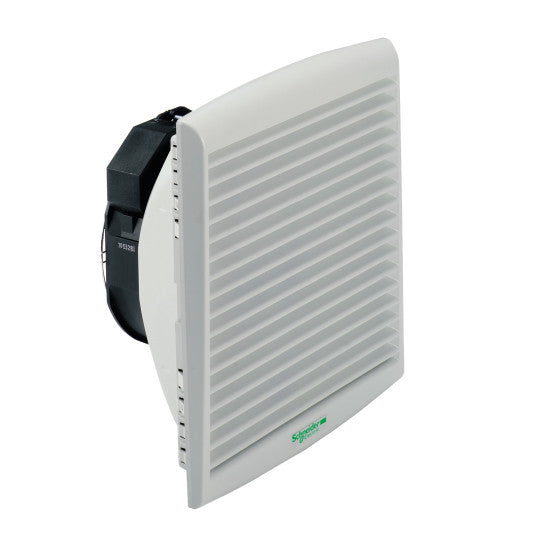

ClimaSys forced vent. IP54, 300m3/h, 115V, with outlet grille and filter G2 - NSYCVF300M115PF
SKU : NSYCVF300M115PF
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
ClimaSys forced vent. IP54, 300m3/h, 115V, with outlet grille and filter G2 - NSYCVF300M115PF
DESCRIPTION
| Lead time: | Usually Ships within 4 Weeks |
|---|
| Range: | ClimaSys |
|---|---|
| Product name: | ClimaSys CV |
| Product or component type: | Fan |
| Type of ventilation filter: | Standard |
| Air flow: | Free flow rate with standard filter: 300 m3/h at 50 HzFree flow rate with standard filter: 350 m3/h at 60 Hz |
| [Us] rated supply voltage: | 75...126 V |
| Input voltage: | 115 V 50/60 Hz |
| Power range: | 36 W 50 Hz36 W 60 Hz |
|---|---|
| [In] rated current: | 0.35 A 50 Hz0.32 A 60 Hz |
| Noise level: | 55...56 dB |
| Bearing type: | Ball |
| Height: | 268 mm external: |
| Width: | 248 mm external: |
| Depth: | 116 mm external: |
| Cut-out dimensions: | 223 x 223 mm |
| Product weight: | 1.3 kg |
| Material: | Outlet grille: injected thermoplastic (ASA PC) |
| Colour: | Outlet grille: grey (RAL 7035) |
| Ambient air temperature for operation: | -10...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Maximum pressure: | 158 Pa flow rate 0 m³/h |
| Connections - terminals: | Faston connector |
| IP degree of protection: | IP54 |
| Device composition: | 1 axial motor2 protective grille: on the front and rear surfaces1 filter: front of axial motor1 outlet grille: front1 cut-out template1 power cord |
| Condition of use: | Flow rates depends on the work point, see ProClima softwareSurrounding environment must be relatively cleanOutside temperature must be 5 °C lower than inside temperatureFilter must be cleaned and replaced regularlyOverfrequent filter replacement should be avoided |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480151293 |
|---|
