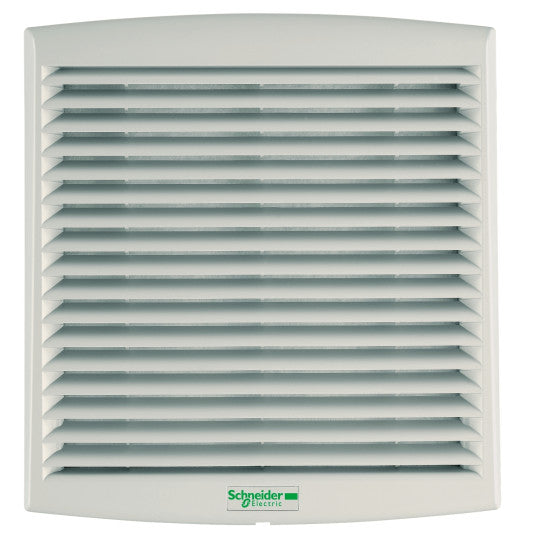

ClimaSys forced vent. IP54, 38m3/h, 115V, with outlet grille and filter G2 - NSYCVF38M115PF
SKU : NSYCVF38M115PF
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
ClimaSys forced vent. IP54, 38m3/h, 115V, with outlet grille and filter G2 - NSYCVF38M115PF
DESCRIPTION
| Range: | ClimaSys |
|---|---|
| Product name: | ClimaSys CV |
| Product or component type: | Fan |
| Type of ventilation filter: | Standard |
| Air flow: | Free flow rate with standard filter: 38 m3/h at 50 HzFree flow rate with standard filter: 39 m3/h at 60 Hz |
| [Us] rated supply voltage: | 75...125 V |
| Input voltage: | 115 V 50/60 Hz |
| Power range: | 3.3 W 50 Hz3.5 W 60 Hz |
|---|---|
| [In] rated current: | 0.16 A 50 Hz0.16 A 60 Hz |
| Noise level: | 40...41 dB |
| Bearing type: | Ball |
| Height: | 137 mm external: |
| Width: | 117 mm external: |
| Depth: | 49 mm external: |
| Cut-out dimensions: | 92 x 92 mm |
| Product weight: | 0.22 kg |
| Material: | Outlet grille: injected thermoplastic (ASA PC) |
| Colour: | Outlet grille: grey (RAL 7035) |
| Ambient air temperature for operation: | -10...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Maximum pressure: | 29 Pa flow rate 0 m³/h |
| Connections - terminals: | Cable |
| IP degree of protection: | IP54 |
| Device composition: | 1 axial motor2 protective grille: on the front and rear surfaces1 filter: front of axial motor1 outlet grille: front1 cut-out template |
| Condition of use: | Outside temperature must be 5 °C lower than inside temperatureFlow rates depends on the work point, see ProClima softwareOverfrequent filter replacement should be avoidedSurrounding environment must be relatively cleanFilter must be cleaned and replaced regularly |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Compliant |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP110717EN_V0 |
| Circularity Profile: | ENVEOLI1107017_V0 |
| Code EAN: | 3606480151170 |
|---|
