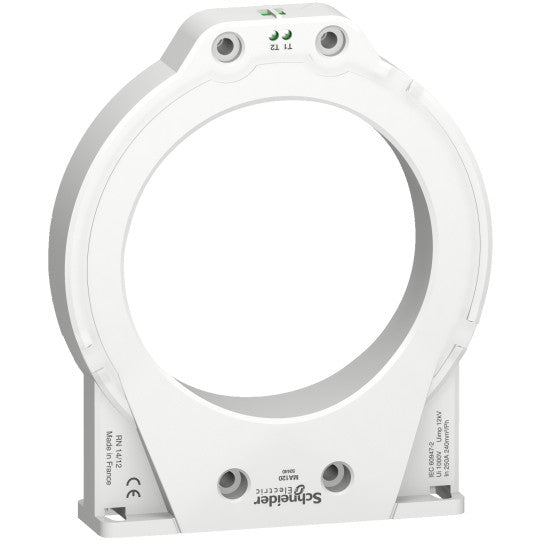

closed toroid A type, for Vigirex and Vigilhom, MA120, inner diameter 120 mm, rated current 250 A - 50440
SKU : 50440
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
closed toroid A type, for Vigirex and Vigilhom, MA120, inner diameter 120 mm, rated current 250 A - 50440
DESCRIPTION
| Range: | VigiPacT |
|---|---|
| Device short name: | MA120 |
| Product or component type: | Earth leakage current sensor |
| Device application: | Equipment monitoring and control |
| Range compatibility: | RH10M residual current protection relay RH10P residual current protection relay RH21M residual current protection relay RH21P residual current protection relay RH68M residual current protection relay RH86M residual current protection relay RH86P residual current protection relay RH99M residual current protection relay RH99P residual current protection relay RH197M residual current protection relay RH197P residual current protection relay RHU residual current protection relay RHUs residual current protection relay RMH residual current protection relay |
| Current transformer type: | A type closed toroid |
| [Ie] rated operational current: | 250 A |
| Transformer ratio: | 1/1000 |
|---|---|
| Network type: | AC/DC |
| Network frequency: | 45...440 Hz |
| [Icw] rated short-time withstand current: | 100 kAfor 0.5 s |
| Residual short-circuit withstand current: | 85 kA / 0.5 s conforming to IEC 60947-2 |
| [Ui] rated insulation voltage: | 1000 V |
| Overvoltage category: | IV |
| [Uimp] rated impulse withstand voltage: | 12 kV |
| Mounting mode: | Fixed (cables)Fixed (plain backplate)Fixed (profiled sheet metal)Fixed (slotted backplate)Clip-on (DIN rail) |
| Calorific value: | 3.89 MJ |
| Connections - terminals: | Screw connection 0.22 mm² |
| Diameter: | 120 mm inner: |
| Cable outer diameter: | 60 mm: 240 mm² (maximum) |
| Product weight: | 0.59 kg |
| Height: | 164 mm |
| Width: | 190 mm |
| Depth: | 44 mm |
| Compatibility code: | MA120 |
| Market segment: | ResidentialSmall commercial |
| IP degree of protection: | Connectors: IP20IP30 |
|---|---|
| Environmental characteristic: | Exposure to damp heat not in service (25...55 °C, RH 95 %) |
| Pollution degree: | Level 3 conforming to IEC 60664-1 |
| Ambient air temperature for operation: | -35...70 °C |
| Ambient air temperature for storage: | -55...85 °C |
| Standards: | IEC 60947-2 |
| Product certifications: | CE |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3303430504405 |
|---|
