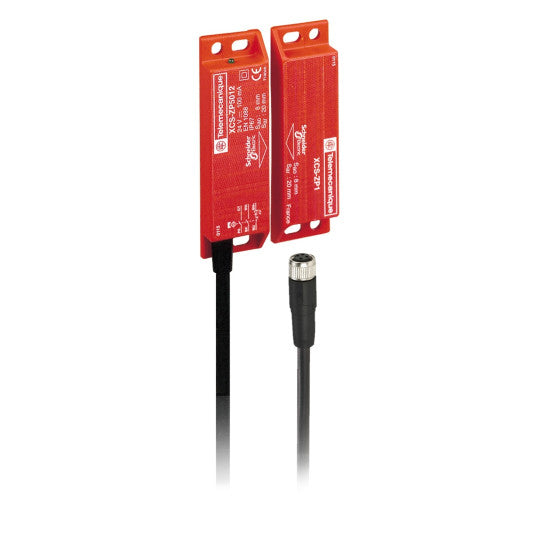

Coded magnetic switch XCSDMP - 1 NC + 1 NO - staggered - M12 0.15m - XCSDMP590L01M12 - Télémécanique
DESCRIPTION
| Range of product: | Telemecanique Safety switches XCS |
|---|---|
| Product or component type: | Coded magnetic switch |
| Component name: | XCSDMP |
| Design: | Rectangular, standard |
| Size: | 88 x 25 x 13 mm |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Staggered |
| Material: | Plastic |
| Electrical connection: | Connector on flying lead |
| Connector type: | M12 |
| Cable length: | 0.15 m |
| Number of poles: | 2 |
| Approach directions: | 3 directions |
| [Ue] rated operational voltage: | 24 V DC |
| [Ui] rated insulation voltage: | 100 V DC |
| [Sa] assured operating distance: | 8 mm |
|---|---|
| [Sar] assured tripping distance: | 20 mm |
| Maximum [Ie] rated operational current: | 100 mA |
| [Uimp] rated impulse withstand voltage: | 2.5 kV conforming to EN/IEC 60947-5-1 |
| Resistance across terminals: | 10 Ohm |
| Short-circuit protection: | 500 mA external cartridge fuse type gG (gl) |
| Contacts material: | Rhodium |
| Electrical durability: | 1200000 cycles |
| Maximum switching voltage: | 100 V DC |
| Switching capacity in mA: | 0.1...100 mA |
| Insulation resistance: | 1000 MOhm |
| Breaking capacity: | 10 VA |
| Switching frequency: | 150 Hz |
| Safety level: | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 |
| Safety reliability data: | B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Enclosure material: | Thermoplastic PBT |
| Cable material: | PVC |
| Depth: | 13 mm |
| Height: | 88 mm |
| Width: | 25 mm |
| Product weight: | 0.18 kg |
| Standards: | EN/ISO 12100EN/IEC 60204-1EN/IEC 60947-5-1CSA C22.2 No 14ISO 14119UL 508 |
|---|---|
| Product certifications: | CSABGUL |
| Protective treatment: | TH |
| Ambient air temperature for operation: | -25...85 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Vibration resistance: | 10 gn (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Maximum sensitivity to magnetic fields: | 0.3 mT |
| Electrical shock protection class: | Class II conforming to EN/IEC 61140 |
| IP degree of protection: | IP67 conforming to IEC 60529 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3389119012386 |
|---|
