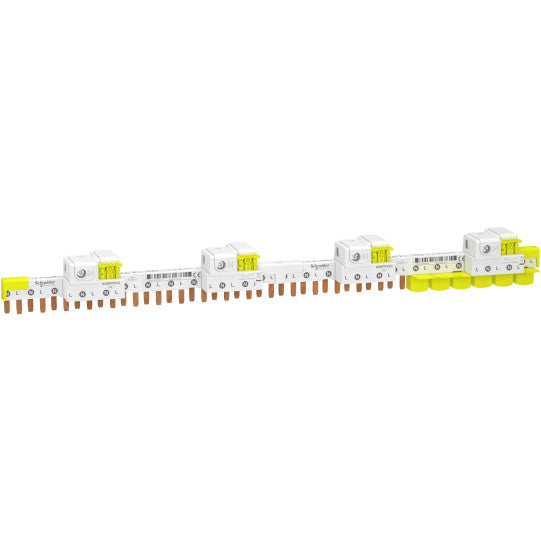

comb busbar, Acti9, 1L+N, 9 mm pitch, 24 modules, 80 A - A9XPP624
DESCRIPTION
| Range: | Acti9 |
|---|---|
| Product or component type: | Comb busbar |
| Accessory / separate part category: | Connection accessory |
| Lines description: | 1L + N |
| Total number of 18 mm modules: | 24 |
| Number of ways: | 24 ways N + 1 L |
|---|---|
| Poles configuration for 1 way: | 1 x 1P + N |
| Connection pitch: | 9 mm between phase and neutral |
| Connector type: | Tooth |
| Distance between way: | 18 mm |
| Marking: | N L |
| Insulation: | Insulated |
| Device presentation: | Cuttable |
| [Ie] rated operational current: | 63 A at 40 °C |
| [Ue] rated operational voltage: | 230 V AC Ph/N |
| [Ui] rated insulation voltage: | 400 V AC conforming to IEC 61439-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Mounting mode: | Horizontal |
| Mounting location: | Top on tunnel type terminals |
| 9 mm pitches: | 48 |
| Width: | 434 mm |
| Colour: | White (RAL 9003) |
| Connections - terminals: | Screw terminals |
| Range compatibility: | Acti 9 C40Acti 9 C40 VigiActi 9 DT40Acti 9 DT40 VigiActi 9 iDPNActi 9 iDPN VigiActi 9 ID C40Acti 9 IDcActi 9 ITG40 Vigi TG40Multi 9 N40Multi 9 N40 VigiActi9 iC40Acti9 iDT40Acti9 iDD40Acti9 iDD40 TG Vigi iTG40Acti9 iIG40Acti9 iCV40 Vigi iCG40Acti9 iID40Acti9 iDT40KActi9 iDD40KActi9 iIG40K |
| Standards: | EN/IEC 60439-1 |
|---|---|
| Fire resistance: | 960 °C ( 30 s ) conforming to IEC 60695-2-1 |
| Pollution degree: | 3 conforming to EN/IEC 60439-1 |
| IP degree of protection: | IP20 with end-pieces and tooth covers |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606489598877 |
|---|
