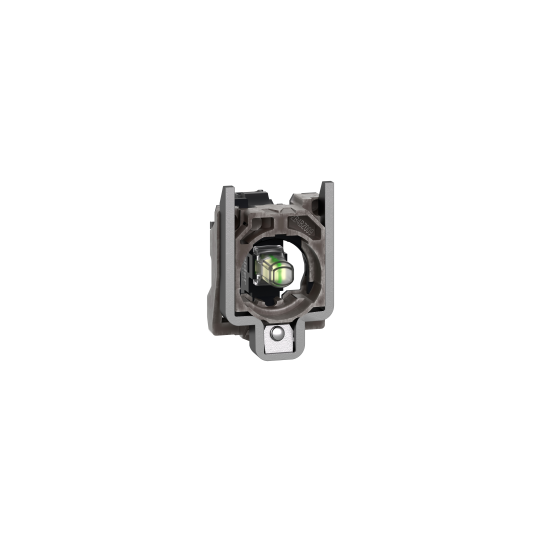

Complete body/light block assembly, Harmony XB4, flashing, with body/fixing collar, universal LED, 24V AC DC - ZB4BV18B1
SKU : ZB4BV18B1
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Complete body/light block assembly, Harmony XB4, flashing, with body/fixing collar, universal LED, 24V AC DC - ZB4BV18B1
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Complete body/light block assembly |
| Device short name: | ZB4 |
| Fixing collar material: | Zamak |
| Sale per indivisible quantity: | 1 |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end |
| Light source: | Universal LED |
| Bulb base: | Integral LED |
| Light source colour: | White |
| [Us] rated supply voltage: | 24 V AC/DC at 50/60 Hz |
| [Us] rated supply voltage: | 24 V |
| CAD overall width: | 30 mm |
|---|---|
| CAD overall height: | 47 mm |
| CAD overall depth: | 37 mm |
| Terminals description ISO n°1: | (X1-X2)PL |
| Net weight: | 0.054 kg |
| Tightening torque: | 0.8...1.2 N.m conforming to IEC 60947-1 |
| Shape of screw head: | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-1 |
| Signalling type: | Flashing |
| Supply voltage limits: | 19.2...30 V DC21.6...26.4 V AC |
| Current consumption: | 18 mA |
| Service life: | 100000 h at rated voltage and 25 °C |
| Surge withstand: | 1 kV conforming to IEC 61000-4-5 |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | ZB4 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Electrical shock protection class: | Class I conforming to IEC 60536 |
| Standards: | IEC 60947-1IEC 60947-5-1CSA C22.2 No 14IEC 60947-5-5IEC 60947-5-4UL 508JIS C8201-5-1JIS C8201-1 |
| Product certifications: | DNVUL listedLROS (Lloyds register of shipping)BVCSA |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients: | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields: | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge: | 6 kV on contact (on metal parts) conforming to IEC 61000-2-68 kV in free air (in insulating parts) conforming to IEC 61000-2-6 |
| Electromagnetic emission: | Class B conforming to IEC 55011 |
| Total lifecycle Carbon footprint: | 17 kg CO2 eq.Carbon footprint of the manufacturing phase [A1 to A3] |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110215038 |
|---|
