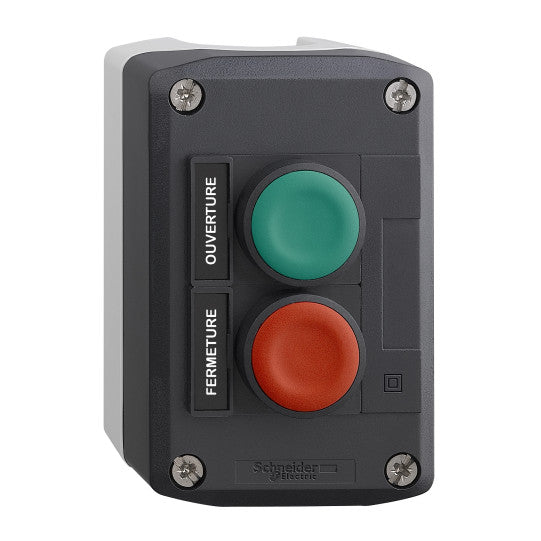

Complete control station, Harmony XALD, dark grey green flush/Red flush pushbuttons Ø22 mm spring return - XALD241
SKU : XALD241
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Complete control station, Harmony XALD, dark grey green flush/Red flush pushbuttons Ø22 mm spring return - XALD241
DESCRIPTION
| Range of product: | Harmony XALD |
|---|---|
| Product or component type: | Complete control station |
| Device short name: | XALD |
| Product destination: | For XB5 Ø 22 mm control and signalling units |
| Control station application: | Start-Stop function |
| Colour of base of enclosure: | Light grey (RAL 7035) |
| Colour of cover: | Dark grey (RAL 7016) |
| Material: | Polycarbonate |
| Operator profile: | 2 flush push-buttons |
| Operators description: | Green ''OUVERTURE'' 1 NO - red ''FERMETURE'' 1 NO |
| Control station composition: | 1 flush push-button, red 1 NO FERMETURE marking1 flush push-button, green 1 NO OUVERTURE marking |
| Marking location: | Marking on legend holder |
| Contact operation: | Slow-break |
| Cable entry: | 2 knock-outs for cable entry, clamping capacity: 14 mm2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
|---|---|
| Product weight: | 0.233 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Positive opening: | Without |
| Operating travel: | 2.6 mm (NO changing electrical state)4.3 mm (total travel) |
| Operating force: | 3.8 N NO changing electrical state |
| Mechanical durability: | 10000000 cycles |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
| Tightening torque: | 0.8...1.2 N.m conforming to EN/IEC 60947-1 |
| Shape of screw head: | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material: | Silver alloy (Ag/Ni) |
| Short-circuit protection: | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current: | 10 A conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-1 |
| [Ie] rated operational current: | 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-13 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-11.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-10.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 |
| Electrical durability: | 1000000 cycles, AC-15, 2 A at 230 V, operating rate 1000000 cycles, AC-15, 3 A at 120 V, operating rate 1000000 cycles, AC-15, 4 A at 24 V, operating rate 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate |
| Electrical reliability: | ? ? |
| Compatibility code: | XALD |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK03 conforming to EN 50102 |
| Standards: | EN/IEC 60947-5-4EN/IEC 60947-1EN/IEC 60947-5-5EN/IEC 60947-5-1JIS C8201-5-1UL 508CSA C22.2 No 14JIS C8201-1 |
| Vibration resistance: | 5 gn (f= 12...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110114379 |
|---|
