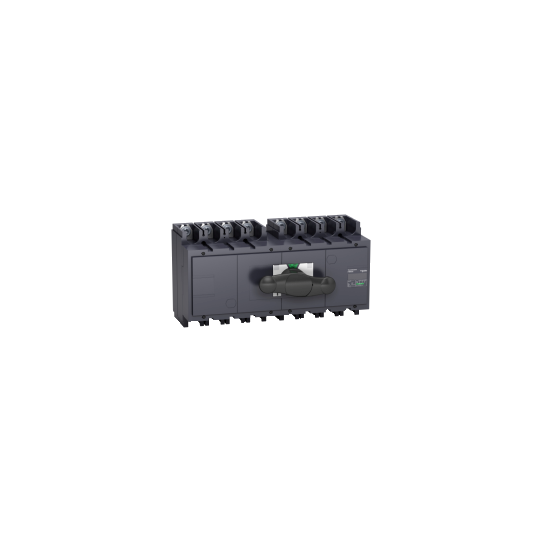

complete manual source changeover assembly, FXM320, Compact INS320 switch disconnectors, 320 A, 4 poles - 31149
SKU : 31149
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
complete manual source changeover assembly, FXM320, Compact INS320 switch disconnectors, 320 A, 4 poles - 31149
DESCRIPTION
| Range of product: | INS320...630 |
|---|---|
| Range: | TransferPacTComPact |
| Device short name: | INS320 |
| Product or component type: | Manual transfer switch |
| Device application: | Change source of supply |
| Range compatibility: | ComPact (ComPacT INS) INS320 switch disconnector |
| Poles description: | 4P |
| Network type: | ACDC |
| Network frequency: | 50/60 Hz |
| Mounting mode: | Fixed |
| Upside connection: | Front |
| Downside connection: | Front |
| Suitability for isolation: | Yes |
| Contact position indicator: | Yes |
| [Icm] rated short-circuit making capacity: | 330 kA with upstream protection circuit breaker 690 V AC at 50/60 Hz50 kA switch-disconnector alone 690 V AC at 50/60 Hz |
| Transfer switch class: | PC |
|---|---|
| Number of contact position: | 3 |
| Control type: | Direct front rotary handle |
| Operating mode: | Manual |
| Mounting support: | PlateRail |
| Locking options description: | Padlocking in OFF position |
| [Ie] rated operational current: | AC-22A: 320 A AC 50/60 Hz 220/240 VAC-22A: 320 A AC 50/60 Hz 380/415 VAC-22A: 320 A AC 50/60 Hz 440/480 VAC-22A: 320 A AC 50/60 Hz 500/525 VAC-22A: 320 A AC 50/60 Hz 660/690 VAC-23A: 320 A AC 50/60 Hz 220/240 VAC-23A: 320 A AC 50/60 Hz 380/415 VAC-23A: 320 A AC 50/60 Hz 440/480 VAC-23A: 320 A AC 50/60 Hz 500/525 VAC-23A: 320 A AC 50/60 Hz 660/690 VDC-22A: 320 A DC 125 V 2 poles in seriesDC-23A: 320 A DC 125 V 2 poles in seriesDC-22A: 320 A DC 250 V 4 poles in seriesDC-23A: 320 A DC 250 V 4 poles in series |
| [Ith] conventional free air thermal current: | 320 A at 60 °C |
| Rated duty: | Uninterrupted |
| Intermittent duty class: | Class 120 - 60 % |
| [Ui] rated insulation voltage: | 750 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| [Ue] rated operational voltage: | 690 V AC 50/60 Hz conforming to IEC 60947-3250 V DC conforming to IEC 60947-3 |
| Mechanical interlocking: | With mechanical interlocking |
| Mechanical durability: | 10000 cycles |
| Electrical durability: | AC-22A: 1500 cycles 440 V AC 50/60 HzAC-22A: 1500 cycles 500 V AC 50/60 HzAC-22A: 1500 cycles 690 V AC 50/60 HzAC-23A: 1500 cycles 440 V AC 50/60 HzAC-23A: 1500 cycles 500 V AC 50/60 HzAC-23A: 1500 cycles 690 V AC 50/60 HzDC-23A: 1000 cycles 250 V DC 4 poles in series |
| Connection pitch: | 45 mm |
| [Icw] rated short-time withstand current: | 11.5 kA during 3 s conforming to IEC 60947-320 kA during 1 s conforming to IEC 60947-34 kA during 30 s conforming to IEC 60947-34.9 kA during 20 s conforming to IEC 60947-3 |
| Height: | 205 mm |
| Width: | 395 mm |
| Depth: | 155 mm |
| Net weight: | 13.5 kg |
| Compatibility code: | ONE_PIECE_CHANGEOVER_INS320 |
| Standards: | IEC 60947-3IEC 60947-1 |
|---|---|
| Product certifications: | CB |
| Electrical shock protection class: | Class II |
| IP degree of protection: | IP40 conforming to IEC 60947-3 |
| Pollution degree: | 3 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -50...85 °C |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3303430311492 |
|---|---|
| Substitution_texte: | Product not available. Here is the equivalent reference that we offer: 31151 - Complete manual source changeover assembly, FXM400, Compact INS400 switch disconnectors, 400 A, 4 poles |
