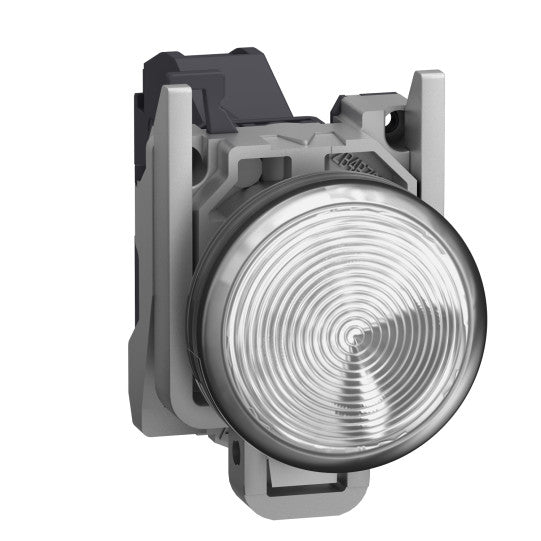

Complete pilot light, Harmony XB4, Explosive atmosphere, White LED 24 240 V - XB4BVBM1GEX
SKU : XB4BVBM1GEX
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Complete pilot light, Harmony XB4, Explosive atmosphere, White LED 24 240 V - XB4BVBM1GEX
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Complete pilot light |
| Device short name: | XB4 |
| Bezel material: | Chromium plated metal |
| Fixing collar material: | Zamak |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Dust zone: | Zone 21 - 22 |
| Gas zone: | Zone 1 - 2 |
| Operator additional information: | With plain lens |
| Width: | 46.2 mm |
|---|---|
| Height: | 30 mm |
| Depth: | 69 mm |
| Product weight: | 0.083 kg |
| Device mounting: | Fixing hole - diameter: 22.5 mm +/- 0.2 mm conforming to EN/IEC 60947-1 |
| Fixing center: | >= 30 x 40 mm (support panel) - thickness: 1...6 mm |
| Embedding depth: | 58 mm |
| Marking: | II 2 GDEx eb mb IIC GbEx tb IIIC Db |
| Shape of signaling unit head: | Round |
| Cap/operator or lens colour: | White |
| Connections - terminals: | Screw clamp terminals, 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1Screw clamp terminals, 1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Tightening torque: | 0.8...1.2 N.m conforming to EN 60947-1 |
| Signalling type: | Steady |
| Light source: | Integral LED |
| Light source colour: | White |
| [Us] rated supply voltage: | 24...254 V AC/DC |
| Service life: | 100000 h |
| Compatibility code: | XB4 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -20...75 °C |
| Overvoltage category: | I conforming to IEC 60536 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| Standards: | EN/IEC 60079-0:2009EN/IEC 60079-7:2009EN/IEC 60079-18:2009EN/IEC 60079-31:2009UL 60079-0UL 60079-18UL 60079-31ANSI/ISA 12.12.01CSA C22.2 No 213 |
| Product certifications: | INERIS 04ATEX9003U |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606489486068 |
|---|
