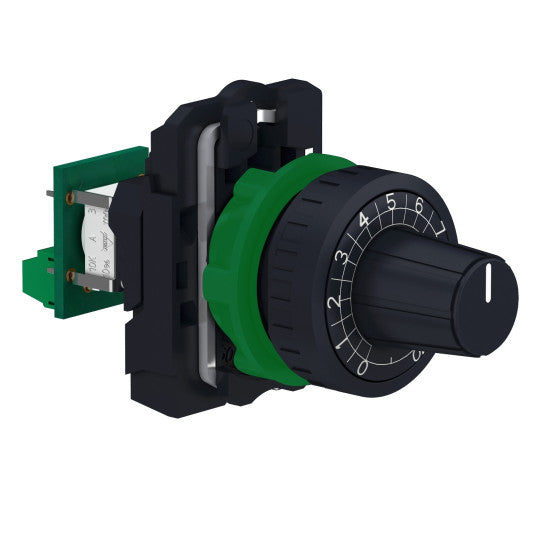

Complete potentiometer, plastic, Ø22, 10K - XB5AD912R10K
SKU : XB5AD912R10K
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Complete potentiometer, plastic, Ø22, 10K - XB5AD912R10K
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Potentiometer |
| Device short name: | XB5 |
| Head type: | Standard |
| Device presentation: | Complete product |
| Bezel material: | Dark grey plastic |
|---|---|
| Mounting diameter: | 22 mm |
| Product compatibility: | Ø 6 mm shaft |
| Sale per indivisible quantity: | 1 |
| CAD overall width: | 30 mm |
| CAD overall height: | 42 mm |
| CAD overall depth: | 82 mm |
| Product weight: | 0.048 kg |
| Protective treatment: | TH |
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Electrical shock protection class: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529 |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| IK degree of protection: | IK03 conforming to IEC 50102 |
| Standards: | CSA C22.2 No 14UL 508EN/IEC 60947-1 |
| Product certifications: | BVCSAUL listed |
| Shape of signaling unit head: | Round |
| Operator profile: | knurled knob, with (white) |
| [Us] rated supply voltage: | |
| Rated power in W: | 1 W at 70 °C |
| Precision of internal conversion resistor: | +-10% |
| Potentiometer characteristic: | Linear |
| Mechanical durability: | 50000 cycles |
| Ohmic value: | 10000 Ohm |
| Material: | Cermet |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Main group: | Potentiometer |
| Group of product: | Potentiometer knurled knob |
| Colour of marking: | White |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | XB5 |
| [Us] rated supply voltage: |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Reference contains Substances of Very High Concern above the threshold |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | X |
| Environmental Disclosure: | ENVPEP1710010EN |
| Circularity Profile: | ENVEOLI1710010EN |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Code EAN: | 3606480985072 |
|---|
