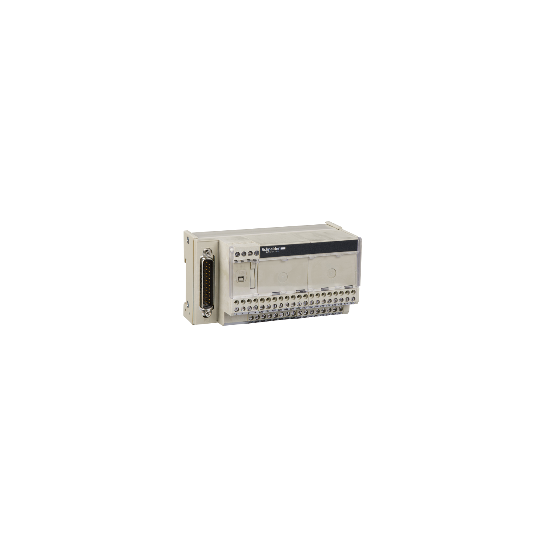

connection sub-base ABE7 - for distribution of 8 analog channels - ABE7CPA03
SKU : ABE7CPA03
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
connection sub-base ABE7 - for distribution of 8 analog channels - ABE7CPA03
DESCRIPTION
| Range of product: | Modicon ABE7 |
|---|---|
| Product or component type: | Connection sub-base for counter and analogue channels |
| Number of channels: | 8 |
| Connections - terminals: | Screw type terminals, 1 x 0.09...1 x 1.5 mm² (AWG 28...AWG 16) flexible with cable endScrew type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 12) solidScrew type terminals, 1 x 0.14...1 x 2.5 mm² (AWG 26...AWG 14) flexible without cable endScrew type terminals, 2 x 0.09...2 x 0.75 mm² (AWG 28...AWG 20) flexible with cable endScrew type terminals, 2 x 0.2...2 x 2.5 mm² (AWG 24...AWG 14) solid |
| Function of module: | Analogue input current, compatible with PremiumAnalogue input voltage, compatible with PremiumPt 100, compatible with Premium |
|---|---|
| [Uc] control circuit voltage: | 24 V DC |
| Connection to PLC: | SUB-D 25 |
| Fixing mode: | By clips (35 mm symmetrical DIN rail)By screws (solid plate with fixing kit) |
| [Ui] rated insulation voltage: | 2000 V terminals/mounting rails |
| Installation category: | II conforming to IEC 60664-1 |
| Tightening torque: | 0.6 N.m with flat Ø 3.5 mm screwdriver |
| Product weight: | 0.33 kg |
| Standards: | CSA C22.2IEC 61131UL 508 |
|---|---|
| Product certifications: | DNVULLROS (Lloyds register of shipping)GLCSABV |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Protective treatment: | TC |
| Resistance to incandescent wire: | 750 °C, extinction time |
| Shock resistance: | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance: | 2 gn (f= 10...150 Hz) conforming to IEC 60068-2-6 |
| Resistance to electrostatic discharge: | 4 kV (contact) level 3 conforming to IEC 61000-4-28 kV (air) level 3 conforming to IEC 61000-4-2 |
| Resistance to radiated fields: | 10 V/m (26000000...1000000000 Hz) conforming to IEC 61000-4-3 level 3 |
| Resistance to fast transients: | 2 kV level 3 conforming to IEC 61000-4-4 |
| Ambient air temperature for operation: | 0...60 °C conforming to IEC 61131-2 |
| Ambient air temperature for storage: | -40...80 °C conforming to IEC 61131-2 |
| Pollution degree: | 2 conforming to IEC 60664-1 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3389110705003 |
|---|
