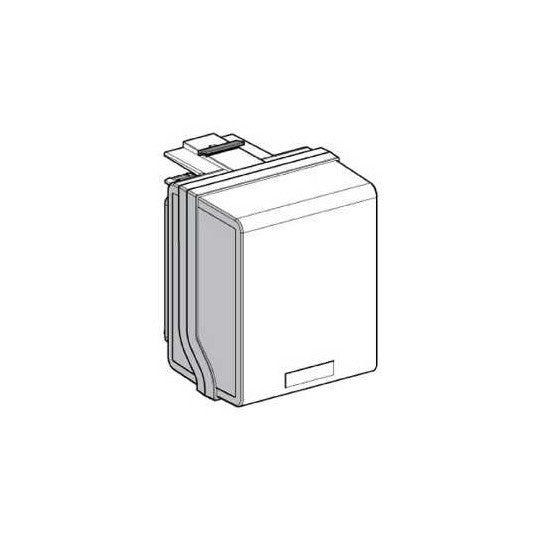

CONNECTOR 32A FUSE 10X38 - KSB32CF5
SKU : KSB32CF5
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
CONNECTOR 32A FUSE 10X38 - KSB32CF5
DESCRIPTION
| Range of product: | Canalis |
|---|---|
| Range: | Canalis |
| Range compatibility: | KS busbar trunking |
| Product or component type: | Tap-off unit |
| Product compatibility: | Canalis KS busbar trunkingplug-in |
| [Ie] rated operational current: | 32 A at 35 °C |
| Fuse type: | fuse isolator: for gG cylindrical fuse, size 10 x 38 mm - 25 A conforming to NF fuse isolator: for aM cylindrical fuse, size 10 x 38 mm - 32 A conforming to NF |
| Provided equipment: | fuse to be ordered separately |
| Mounting mode: | Plug-in with fixed polarity |
| Tap-off unit polarity: | 3L+N+PE |
| Colour: | White (RAL 9001) |
| Device application: | Medium power distribution |
|---|---|
| [Ue] rated operational voltage: | 230...690 V depending on protective device |
| [Uimp] rated impulse withstand voltage: | 6.8 kV |
| [Ui] rated insulation voltage: | 690 V depending on protective device |
| Network frequency: | 50/60 Hz |
| Electrical connection: | Cable clamp terminal - ISO32 6 mm² flexibleCable clamp terminal - ISO32 10 mm² rigid |
| Door opening side: | Front |
| Tap-off unit disconnection mode: | By drawing out |
| Standards: | IEC 61439-1IEC 61439-6 |
| Body material: | Plastic |
| Width: | 135 mm |
| Depth: | 153 mm |
| Height: | 175 mm |
| Product weight: | 0.6 kg |
| Earthing system: | TTTN-SIT |
|---|---|
| IP degree of protection: | IP55 conforming to IEC 60529 |
| IK degree of protection: | IK08 conforming to IEC 62262 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480005961 |
|---|
