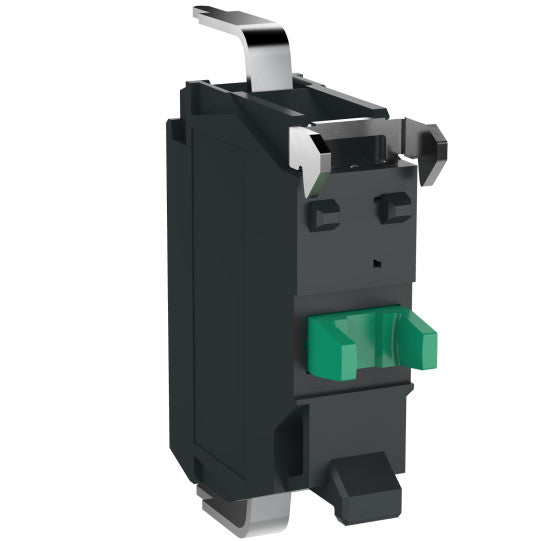

Contact block, Harmony XB4, Harmony XB5, single 1 NO PCB connection - ZBE101A
SKU : ZBE101A
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Contact block, Harmony XB4, Harmony XB5, single 1 NO PCB connection - ZBE101A
DESCRIPTION
| Range of product: | Harmony XB4Harmony XB5 |
|---|---|
| Product or component type: | Contact block |
| Device short name: | ZBE |
| Sale per indivisible quantity: | 5 |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Contact operation: | Slow-break |
| Contact block type: | Single |
| Contacts usage: | Low power switching contacts |
| Product weight: | 0.012 kg |
|---|---|
| Contacts type and composition: | 1 NO |
| Positive opening: | Without |
| Operating travel: | 2.6 mm (NO changing electrical state)4.3 mm (total travel) |
| Operating force: | 2.3 N NO changing electrical state |
| Mechanical durability: | 500000 cycles |
| Tightening torque: | 0.8...1.2 N.m conforming to EN 60947-1 |
| Shape of screw head: | Cross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material: | Gold flashed (Ag/Ni/Au) contacts |
| Short-circuit protection: | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current: | 10 A conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN 60947-1 |
| [Ie] rated operational current: | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-16 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-10.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-11.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Electrical durability: | 1000000 cycles, AC-15, 2 A at 230 V, operating rate 1000000 cycles, AC-15, 3 A at 120 V, operating rate 1000000 cycles, AC-15, 4 A at 24 V, operating rate 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate |
| Mounting of block: | Front mounting |
| Electrical composition code: | C1 (quantity C2 (quantity C3 (quantity C4 (quantity C5 (quantity C6 (quantity C7 (quantity C8 (quantity C9 (quantity C12 (quantity M1 (quantity M2 (quantity M3 (quantity M5 (quantity M6 (quantity M7 (quantity M8 (quantity M9 (quantity SF1 (quantity SF2 (quantity MF1 (quantity MF2 (quantity C10 (quantity M4 (quantity C13 (quantity |
| Compatibility code: | ZBE |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Standards: | JIS C8201-5-1EN/IEC 60947-1EN/IEC 60947-5-4UL 508EN/IEC 60947-5-1CSA C22.2 No 14JIS C8201-1 |
| Product certifications: | GLDNVULLROS (Lloyds register of shipping)CSACCCGOSTBV |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119056380 |
|---|
