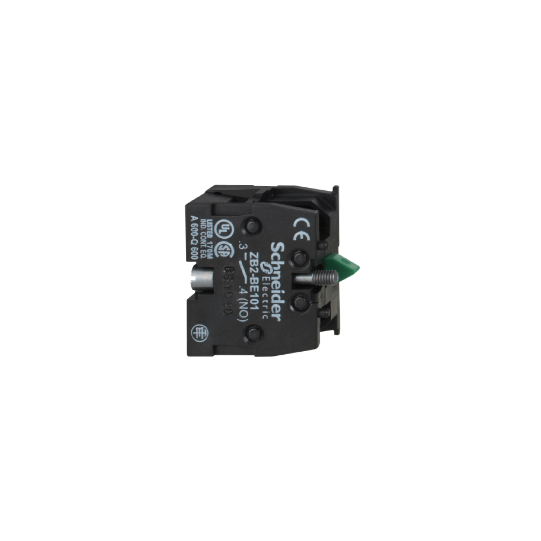

CONTACT BLOCK - ZB2BE101
SKU : ZB2BE101
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
CONTACT BLOCK - ZB2BE101
DESCRIPTION
| Range of product: | Harmony XAC |
|---|---|
| Product or component type: | Contact block |
| Component name: | ZB2 |
| Electrical circuit type: | Control circuit |
| Contact block application: | Single speed |
| Contact block type: | Single |
| Type of operator: | Spring return |
| Product compatibility: | XB4XAPS2XACAXB5 |
| Contacts type and composition: | 1 NO |
| Mounting of block: | Front mounting |
| Contact operation: | Slow-break |
| Connections - terminals: | Screw clamps terminals, 1 x 2.5 mm² with or without cable endScrew clamps terminals, 2 x 1.5 mm² with or without cable end |
|---|---|
| Mechanical durability: | 1000000 cycles |
| Contact code designation: | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 947-5-1 appendix AQ600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 10 A |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals: | 25 MOhm |
| Operating force: | 13...15 N |
| Short-circuit protection: | 10 A fuse protection by cartridge fuse type gG (gl) |
| Rated operational power in W: | 40 W DC-13 for 1000000 cycles, operating rate 48 W DC-13 for 1000000 cycles, operating rate 65 W DC-13 for 1000000 cycles, operating rate |
| Terminals description ISO n°1: | (13-14)NO |
| Product weight: | 0.02 kg |
| Standards: | EN/IEC 60947-5-1UL 508EN/IEC 60204-32CSA C22.2 No 14 |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 15 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 100 gn conforming to IEC 60068-2-27 |
| Electrical shock protection class: | Class II conforming to IEC 61140 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110612608 |
|---|
