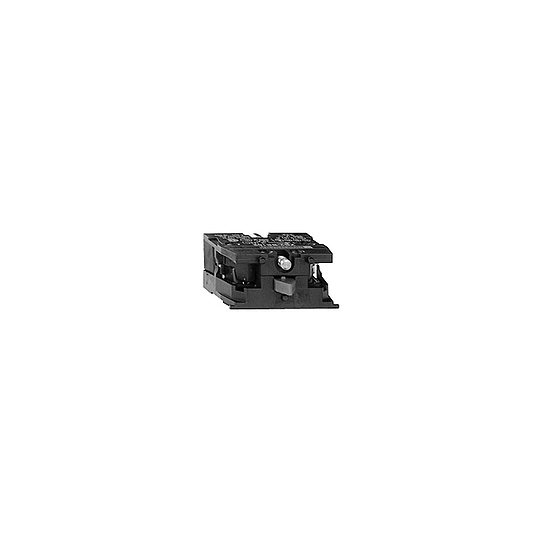

CONTACT BLOCK - ZB2BE102
DESCRIPTION
| Range of product: | Harmony XAC |
|---|---|
| Product or component type: | Contact block |
| Component name: | ZB2 |
| Electrical circuit type: | Control circuit |
| Contact block application: | Single speed |
| Contact block type: | Single |
| Type of operator: | Spring return |
| Product compatibility: | XACAXB4XB5 |
| Contacts type and composition: | 1 NC |
| Mounting of block: | Front mounting |
| Contact operation: | Slow-break |
| Connections - terminals: | Screw clamps terminals, 1 x 2.5 mm² with or without cable endScrew clamps terminals, 2 x 1.5 mm² with or without cable end |
|---|---|
| Mechanical durability: | 1000000 cycles |
| Contact code designation: | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 947-5-1 appendix AQ600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 10 A |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals: | 25 MOhm |
| Operating force: | 13...15 N |
| Short-circuit protection: | 10 A fuse protection by cartridge fuse type gG (gl) |
| Rated operational power in W: | 40 W DC-13 for 1000000 cycles, operating rate 48 W DC-13 for 1000000 cycles, operating rate 65 W DC-13 for 1000000 cycles, operating rate |
| Terminals description ISO n°1: | (11-12)NC |
| Product weight: | 0.02 kg |
| Standards: | EN/IEC 60204-32EN/IEC 60947-5-1CSA C22.2 No 14UL 508 |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 15 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 100 gn conforming to IEC 60068-2-27 |
| Electrical shock protection class: | Class II conforming to IEC 61140 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110612615 |
|---|---|
| Contexte: | Conçues pour le levage et la manutention, ces boites pendantes très robustes répondent aux exigences de sécurité des normes IEC.
|
| Substitution_texte: | Obsolete product, here is the proposed substitution for the reference ZB2BE102 : ZBE102 |
