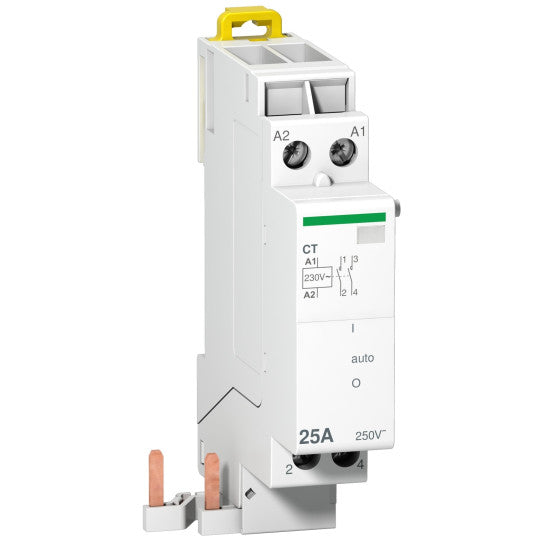

contactor CT - 2 NO - 25 A - 230 V AC - A9C15185
SKU : A9C15185
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
contactor CT - 2 NO - 25 A - 230 V AC - A9C15185
DESCRIPTION
| Range of product: | ProDis |
|---|---|
| Range: | Acti9 |
| Product name: | Acti9 CT |
| Product or component type: | Contactor |
| Device short name: | CT |
| Device application: | Control circuit |
| Poles description: | 2P |
| [Ie] rated operational current: | 25 A AC-7A8.5 A AC-7B |
| Pole contact composition: | 2 NO |
| Network type: | AC |
| Utilisation category: | AC-1 conforming to IEC 60947-4 |
| Control type: | Remote control |
| [Uc] control circuit voltage: | 230 V AC 50 Hz |
| Network frequency: | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage: | 250 V AC 50 Hz |
| Maximum power: | 3 W at 250 V AC |
| [Ui] rated insulation voltage: | 500 V AC |
| [Uimp] rated impulse withstand voltage: | 2.5 kV |
| Control signal type: | Maintained |
| Switching frequency: | 100 switching operations/day |
| Local signalling: | Color indicator |
| Hold-in power consumption in VA: | 3.8 VA |
| Inrush power in VA: | 15 VA |
| Mounting mode: | Clip-on |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 2 |
| Height: | 90 mm |
| Width: | 18 mm |
| Depth: | 66 mm |
| Product weight: | 110 g |
| Colour: | White |
| Connections - terminals: | Power circuit: tunnel type terminals2 cable(s) 2.5 mm² flexiblePower circuit: tunnel type terminals1 cable(s) 6 mm² rigidControl circuit: tunnel type terminals2 cable(s) 2.5 mm² flexibleControl circuit: tunnel type terminals2 cable(s) 1.5 mm² rigid |
| Tightening torque: | 0.8 N.m |
| Wire stripping length: | 10 mm |
| Product compatibility: | No auxiliary |
| Compatibility code: | CT |
| Standards: | IEC 61095EN 61095 |
|---|---|
| Product certifications: | NF |
| Noise level: | 30 dB |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree: | 2 |
| Tropicalisation: | 2 conforming to CEI 610952 conforming to EN 61095 |
| Relative humidity: | 95 % at 55 °C |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -5...60 °C |
| Ambient air temperature for storage: | -40...60 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480376924 |
|---|
