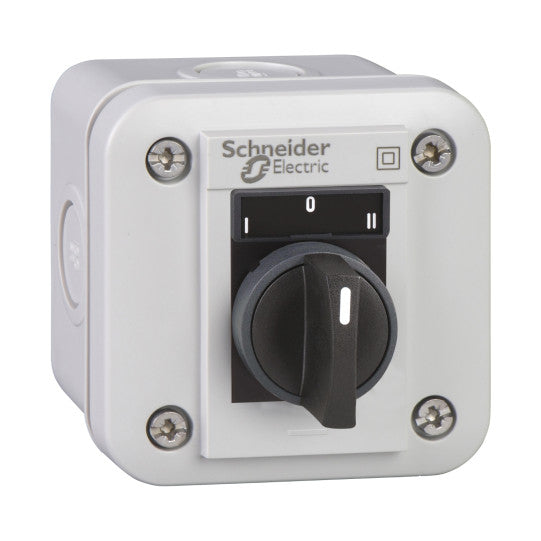

control station XAL-E - selector switch 3 position - I-O-II - white - 2 NO - XALE1333
SKU : XALE1333
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
control station XAL-E - selector switch 3 position - I-O-II - white - 2 NO - XALE1333
DESCRIPTION
| Range of product: | Harmony XALE |
|---|---|
| Product or component type: | Complete control station |
| Device short name: | XALE |
| Product destination: | For XB7 Ø 22 mm control and signalling units |
| Control station application: | One function |
| Colour of base of enclosure: | Light grey (RAL 7035) |
| Colour of cover: | Light grey (RAL 7035) |
| Material: | ABS (acrylonitrile butadiene-styrene) |
| IP degree of protection: | IP54 conforming to IEC 60529 |
| Control station composition: | 1 selector switch with standard handle, stay put 2 NO, white I-O-II marking |
| Marking location: | Marking on legend holder |
| Contact operation: | Slow-break |
| Cable entry: | 2 knock-outs, clamping capacity: 16 mm4 knock-outs for ISO M20 |
|---|---|
| Product weight: | 0.105 kg |
| Marking: | CE |
| Operator position information: | 3 positions |
| Positive opening: | Without |
| Short-circuit protection: | 4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to EN/IEC 60947-1 |
| [Ie] rated operational current: | 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-10.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-10.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-10.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1 |
| Electrical reliability: | ? |
| Compatibility code: | XALE |
| Protective treatment: | TC |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...55 °C |
| Electrical shock protection class: | Class II conforming to IEC 60536 |
| IK degree of protection: | IK05 conforming to EN 50102 |
| Standards: | EN/IEC 60947-1EN/IEC 62208EN/IEC 60947-5-1EN/IEC 60947-5-5 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119017763 |
|---|
