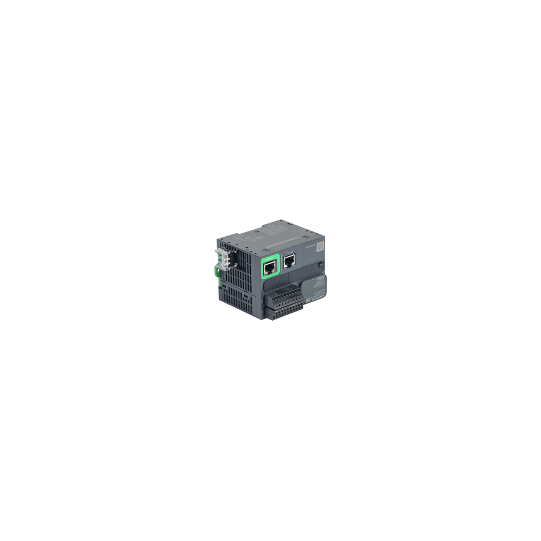

controller M221 16 IO relay Ethernet - TM221ME16R

DESCRIPTION

DESCRIPTION

Range of product:	Modicon M221
Product or component type:	Logic controller
[Us] rated supply voltage:	24 V DC
Discrete input number:	8, discrete input conforming to IEC 61131-2 Type 1
Analogue input number:	2 at 0...10 V
Discrete output type:	Relay normally open
Discrete output number:	8 relay
Discrete output voltage:	5...125 V DC5...250 V AC
Discrete output current:	2 A

Discrete I/O number:	16
Maximum number of I/O expansion module:	7 for relay output
Supply voltage limits:	20.4...28.8 V
Inrush current:	35 A
Maximum power consumption in W:	23.3 W at 24 V (with max number of I/O expansion module)4.3 W at 24 V (without I/O expansion module)
Power supply output current:	0.52 A 5 V for expansion bus0.46 A 24 V for expansion bus
Discrete input logic:	Sink or source (positive/negative)
Discrete input voltage:	24 V
Discrete input voltage type:	DC
Analogue input resolution:	10 bits
LSB value:	10 mV
Conversion time:	1 ms per channel + 1 controller cycle time for analogue input analog input
Permitted overload on inputs:	+/- 30 V DC for 5 min (maximum) for analog input+/- 13 V DC (permanent) for analog input
Voltage state 1 guaranteed:	>= 15 V for input
Voltage state 0 guaranteed:
Discrete input current:	7 mA for discrete input5 mA for fast input
Input impedance:	100 kOhm for analog input3.4 kOhm for input4.9 kOhm for fast input
Response time:	35 µs turn-off, I2...I5 terminal(s) for input5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input35 µs turn-on, other terminals terminal(s) for input5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input100 µs turn-off, other terminals terminal(s) for input5 µs turn-on, turn-off, Q0...Q1 terminal(s) for output50 µs turn-on, turn-off, Q2...Q3 terminal(s) for output300 µs turn-on, turn-off, other terminals terminal(s) for output
Configurable filtering time:	0 ms for input3 ms for input12 ms for input
Output voltage limits:	125 V DC277 V AC
Maximum current per output common:	7 A
Absolute accuracy error:	+/- 1 % of full scale for analog input
Electrical durability:	100000 cycles AC-12, 120 V, 240 VA, resistive100000 cycles AC-12, 240 V, 480 VA, resistive300000 cycles AC-12, 120 V, 80 VA, resistive300000 cycles AC-12, 240 V, 160 VA, resistive100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, inductive100000 cycles AC-15, cos phi = 0.35, 240 V, 120 VA, inductive300000 cycles AC-15, cos phi = 0.35, 120 V, 18 VA, inductive300000 cycles AC-15, cos phi = 0.35, 240 V, 36 VA, inductive100000 cycles AC-14, cos phi = 0.7, 120 V, 120 VA, inductive100000 cycles AC-14, cos phi = 0.7, 240 V, 240 VA, inductive300000 cycles AC-14, cos phi = 0.7, 120 V, 36 VA, inductive300000 cycles AC-14, cos phi = 0.7, 240 V, 72 VA, inductive100000 cycles DC-12, 24 V, 48 W, resistive300000 cycles DC-12, 24 V, 16 W, resistive100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms)300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms)
Switching frequency:	20 switching operations/minute with maximum load
Mechanical durability:	20000000 cycles for relay output
Minimum load:	1 mA at 5 V DC for relay output
Protection type:	Without protection at 5 A
Reset time:	1 s
Memory capacity:	256 kB for user application and data RAM with 10000 instructions256 kB for internal variables RAM
Data backed up:	256 kB built-in flash memory for backup of application and data
Data storage equipment:	2 GB SD card (optional)
Battery type:	BR2032 lithium non-rechargeable, battery life: 4 year(s)
Backup time:	1 year at 25 °C (by interruption of power supply)
Execution time for 1 KInstruction:	0.3 ms for event and periodic task0.7 ms for other instruction
Execution time per instruction:	0.2 µs Boolean
Exct time for event task:	60 µs response time
Application structure:	1 configurable freewheeling/cyclic master task1 cyclic auxiliary task8 interrupt tasks
Maximum size of object areas:	512 %KW constant words255 %C counters8000 %MW memory words255 %TM timers512 %M memory bits
Realtime clock:	With
Clock drift:
Regulation loop:	Adjustable PID regulator up to 14 simultaneous loops
Function available:	Frequency generatorPWMPLS
Counting input number:	4 fast input (HSC mode) at 100 kHz 32 bits
Control signal type:	Single phaseA/BPulse/direction
Integrated connection type:	USB port with mini B USB 2.0 connectorNon isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface Ethernet with RJ45 connector
Supply:	(serial 1)serial link supply: 5 V,
Transmission rate:	1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS4851.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232480 Mbit/s for USB
Communication port protocol:	USB port: USB - SoMachine-NetworkNon isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-NetworkEthernet
Port Ethernet:	10BASE-T/100BASE-TX 1 port with 100 m copper cable
Communication service:	DHCP clientModbus TCP slave deviceEthernet/IP adapterModbus TCP clientModbus TCP server
Local signalling:	1 LED (green) for PWR1 LED (green) for RUN1 LED (red) for module error (ERR)1 LED (green) for SD card access (SD)1 LED (red) for BAT1 LED per channel (green) for I/O state1 LED (green) for SLEthernet network activity (green) for ACTEthernet network link (yellow) for Link (Link Status)
Electrical connection:	terminal block, 3 terminal(s) for connecting the 24 V DC power supply connector, 4 terminal(s) for analogue inputsMini B USB 2.0 connector for a programming terminal removable screw terminal block, 10 terminal(s) for inputs removable screw terminal block, 11 terminal(s) for outputs
Maximum cable distance between devices:	Shielded cable: Unshielded cable: Unshielded cable: Unshielded cable: Shielded cable:
Insulation:	Between input and internal logic at 500 V ACBetween fast input and internal logic at 500 V ACNon-insulated between inputsBetween output and internal logic at 500 V ACBetween output groups at 500 V ACNon-insulated between analogue input and internal logicNon-insulated between analogue inputs
Marking:	CE
Mounting support:	Top hat type TH35-15 rail conforming to IEC 60715Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
Height:	90 mm
Depth:	70 mm
Width:	70 mm
Product weight:	0.264 kg

Standards:	EN/IEC 61010-2-201EN/IEC 61131-2EN/IEC 60664-1
Product certifications:	LRcULusCSADNV-GLRCMEACABSIACS E10
Environmental characteristic:	Ordinary and hazardous location
Resistance to electrostatic discharge:	8 kV in air conforming to EN/IEC 61000-4-24 kV on contact conforming to EN/IEC 61000-4-2
Resistance to electromagnetic fields:	10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-33 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-31 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3
Resistance to magnetic fields:	30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8
Resistance to fast transients:	2 kV (power lines) conforming to EN/IEC 61000-4-42 kV (relay output) conforming to EN/IEC 61000-4-41 kV (I/O) conforming to EN/IEC 61000-4-41 kV (Ethernet line) conforming to EN/IEC 61000-4-41 kV (serial link) conforming to EN/IEC 61000-4-4
Surge withstand:	2 kV power lines (AC) common mode conforming to EN/IEC 61000-4-52 kV relay output common mode conforming to EN/IEC 61000-4-51 kV I/O common mode conforming to EN/IEC 61000-4-51 kV shielded cable common mode conforming to EN/IEC 61000-4-50.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-51 kV power lines (AC) differential mode conforming to EN/IEC 61000-4-51 kV relay output differential mode conforming to EN/IEC 61000-4-50.5 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5
Resistance to conducted disturbances:	10 V 0.15...80 MHz conforming to EN/IEC 61000-4-63 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL)10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
Electromagnetic emission:	Conducted emissions - test level: 79 dB?V/m QP/66 dB?V/m AV ( power lines (AC)) at 0.15...0.5 MHz conforming to EN/IEC 55011Conducted emissions - test level: 73 dB?V/m QP/60 dB?V/m AV ( power lines (AC)) at 0.5...300 MHz conforming to EN/IEC 55011Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10...150 kHz conforming to EN/IEC 55011Conducted emissions - test level: 63 dB?V/m QP ( power lines) at 1.5...30 MHz conforming to EN/IEC 55011Radiated emissions - test level: 40 dB?V/m QP class A ( 10 m) at 30...230 MHz conforming to EN/IEC 55011Conducted emissions - test level: 79...63 dB?V/m QP ( power lines) at 150...1500 kHz conforming to EN/IEC 55011Radiated emissions - test level: 47 dB?V/m QP class A ( 10 m) at 200...1000 MHz conforming to EN/IEC 55011
Immunity to microbreaks:	10 ms
Ambient air temperature for operation:	-10...55 °C (horizontal installation)-10...35 °C (vertical installation)
Ambient air temperature for storage:	-25...70 °C
Relative humidity:	10...95 %, without condensation (in operation)10...95 %, without condensation (in storage)
IP degree of protection:	IP20 with protective cover in place
Pollution degree:
Operating altitude:	0...2000 m
Storage altitude:	0...3000 m
Vibration resistance:	3.5 mm at 5...8.4 Hz on symmetrical rail3.5 mm at 5...8.4 Hz on panel mounting1 gn at 8.4...150 Hz on symmetrical rail1 gn at 8.4...150 Hz on panel mounting
Shock resistance:	98 m/s² for 11 ms
Sustainable offer status:	Green Premium productREACh Regulation

Code EAN:	3606480611278
