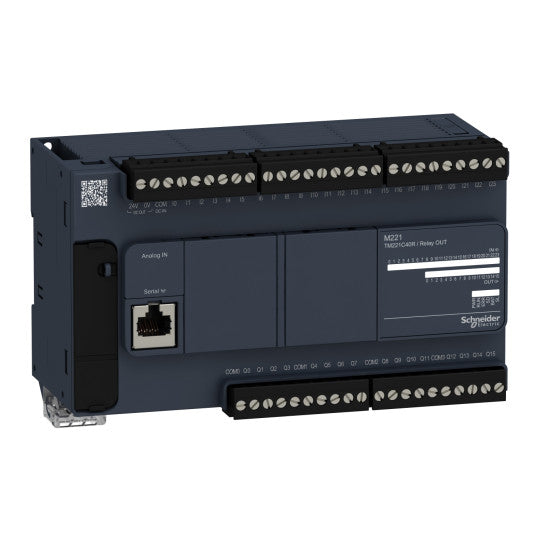

controller M221 40 IO relay - TM221C40R
DESCRIPTION
| Range of product: | Modicon M221 |
|---|---|
| Product or component type: | Logic controller |
| [Us] rated supply voltage: | 100...240 V AC |
| Discrete input number: | 24, discrete input conforming to IEC 61131-2 Type 1 |
| Analogue input number: | 2 at 0...10 V |
| Discrete output type: | Relay normally open |
| Discrete output number: | 16 relay |
| Discrete output voltage: | 5...125 V DC5...250 V AC |
| Discrete output current: | 2 A |
| Discrete I/O number: | 40 |
|---|---|
| Maximum number of I/O expansion module: | 7 for relay output |
| Supply voltage limits: | 85...264 V |
| Network frequency: | 50/60 Hz |
| Inrush current: | 40 A |
| Maximum power consumption in VA: | 67 VA at 100...240 V with max number of I/O expansion module37 VA at 100...240 V without I/O expansion module |
| Power supply output current: | 0.52 A 5 V for expansion bus0.24 A 24 V for expansion bus |
| Discrete input logic: | Sink or source (positive/negative) |
| Discrete input voltage: | 24 V |
| Discrete input voltage type: | DC |
| Analogue input resolution: | 10 bits |
| LSB value: | 10 mV |
| Conversion time: | 1 ms per channel + 1 controller cycle time for analogue input analog input |
| Permitted overload on inputs: | +/- 30 V DC for 5 min (maximum) for analog input+/- 13 V DC (permanent) for analog input |
| Voltage state 1 guaranteed: | >= 15 V for input |
| Voltage state 0 guaranteed: | |
| Discrete input current: | 7 mA for discrete input5 mA for fast input |
| Input impedance: | 3.4 kOhm for discrete input100 kOhm for analog input4.9 kOhm for fast input |
| Response time: | 35 µs turn-off, I2...I5 terminal(s) for input10 ms turn-on for output10 ms turn-off for output5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input35 µs turn-on, other terminals terminal(s) for input5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input100 µs turn-off, other terminals terminal(s) for input |
| Configurable filtering time: | 0 ms for input3 ms for input12 ms for input |
| Output voltage limits: | 125 V DC277 V AC |
| Maximum current per output common: | 7 A |
| Absolute accuracy error: | +/- 1 % of full scale for analog input |
| Electrical durability: | 100000 cycles AC-12, 120 V, 240 VA, resistive100000 cycles AC-12, 240 V, 480 VA, resistive300000 cycles AC-12, 120 V, 80 VA, resistive300000 cycles AC-12, 240 V, 160 VA, resistive100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, inductive100000 cycles AC-15, cos phi = 0.35, 240 V, 120 VA, inductive300000 cycles AC-15, cos phi = 0.35, 120 V, 18 VA, inductive300000 cycles AC-15, cos phi = 0.35, 240 V, 36 VA, inductive100000 cycles AC-14, cos phi = 0.7, 120 V, 120 VA, inductive100000 cycles AC-14, cos phi = 0.7, 240 V, 240 VA, inductive300000 cycles AC-14, cos phi = 0.7, 120 V, 36 VA, inductive300000 cycles AC-14, cos phi = 0.7, 240 V, 72 VA, inductive100000 cycles DC-12, 24 V, 48 W, resistive300000 cycles DC-12, 24 V, 16 W, resistive100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms)300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms) |
| Switching frequency: | 20 switching operations/minute with maximum load |
| Mechanical durability: | 20000000 cycles for relay output |
| Minimum load: | 1 mA at 5 V DC for relay output |
| Protection type: | Without protection at 5 A |
| Reset time: | 1 s |
| Memory capacity: | 256 kB for user application and data RAM with 10000 instructions256 kB for internal variables RAM |
| Data backed up: | 256 kB built-in flash memory for backup of application and data |
| Data storage equipment: | 2 GB SD card (optional) |
| Battery type: | BR2032 lithium non-rechargeable, battery life: 4 year(s) |
| Backup time: | 1 year at 25 °C (by interruption of power supply) |
| Execution time for 1 KInstruction: | 0.3 ms for event and periodic task |
| Execution time per instruction: | 0.2 µs Boolean |
| Exct time for event task: | 60 µs response time |
| Maximum size of object areas: | 512 %M memory bits512 %KW constant words8000 %MW memory words255 %C counters255 %TM timers |
| Realtime clock: | With |
| Clock drift: | |
| Regulation loop: | Adjustable PID regulator up to 14 simultaneous loops |
| Counting input number: | 4 fast input (HSC mode) at 100 kHz 32 bits |
| Control signal type: | Single phasePulse/directionA/B |
| Integrated connection type: | USB port with mini B USB 2.0 connectorNon isolated serial link serial 1 with RJ45 connector and RS485 interface Non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface |
| Supply: | (serial)serial link supply: 5 V, |
| Transmission rate: | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS4851.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232480 Mbit/s for USB |
| Communication port protocol: | USB port: USB - SoMachine-NetworkNon isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Local signalling: | 1 LED (green) for PWR1 LED (green) for RUN1 LED (red) for module error (ERR)1 LED (green) for SD card access (SD)1 LED (red) for BAT1 LED (green) for SL11 LED (green) for SL21 LED per channel (green) for I/O state |
| Electrical connection: | removable screw terminal block for inputs removable screw terminal block for outputs terminal block, 3 terminal(s) for connecting the 24 V DC power supply connector, 4 terminal(s) for analogue inputsMini B USB 2.0 connector for a programming terminal |
| Maximum cable distance between devices: | Shielded cable: Unshielded cable: Unshielded cable: Unshielded cable: |
| Insulation: | Between input and internal logic at 500 V ACNon-insulated between analogue input and internal logicNon-insulated between analogue inputsBetween supply and ground at 1500 V ACBetween sensor power supply and ground at 500 V ACBetween input and ground at 500 V ACBetween output and ground at 1500 V ACBetween supply and internal logic at 2300 V ACBetween sensor power supply and internal logic at 500 V ACBetween output and internal logic at 2300 V ACBetween Ethernet terminal and internal logic at 500 V ACBetween supply and sensor power supply at 2300 V AC |
| Marking: | CE |
| Sensor power supply: | 24 V DC at 250 mA supplied by the controller |
| Mounting support: | Top hat type TH35-15 rail conforming to IEC 60715Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height: | 90 mm |
| Depth: | 70 mm |
| Width: | 160 mm |
| Product weight: | 0.456 kg |
| Standards: | EN/IEC 61131-2EN/IEC 60664-1EN/IEC 61010-2-201 |
|---|---|
| Product certifications: | RCMIACS E10LRCSAcULusDNV-GLABSEAC |
| Environmental characteristic: | Ordinary and hazardous location |
| Resistance to electrostatic discharge: | 8 kV in air conforming to EN/IEC 61000-4-24 kV on contact conforming to EN/IEC 61000-4-2 |
| Resistance to electromagnetic fields: | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-33 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-31 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3 |
| Resistance to magnetic fields: | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| Resistance to fast transients: | 2 kV (power lines) conforming to EN/IEC 61000-4-42 kV (relay output) conforming to EN/IEC 61000-4-41 kV (I/O) conforming to EN/IEC 61000-4-41 kV (Ethernet line) conforming to EN/IEC 61000-4-41 kV (serial link) conforming to EN/IEC 61000-4-4 |
| Surge withstand: | 2 kV power lines (AC) common mode conforming to EN/IEC 61000-4-52 kV relay output common mode conforming to EN/IEC 61000-4-51 kV I/O common mode conforming to EN/IEC 61000-4-51 kV shielded cable common mode conforming to EN/IEC 61000-4-50.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-51 kV power lines (AC) differential mode conforming to EN/IEC 61000-4-51 kV relay output differential mode conforming to EN/IEC 61000-4-50.5 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5 |
| Resistance to conducted disturbances: | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-63 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL)10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| Electromagnetic emission: | Conducted emissions - test level: 79 dB?V/m QP/66 dB?V/m AV ( power lines (AC)) at 0.15...0.5 MHz conforming to EN/IEC 55011Conducted emissions - test level: 73 dB?V/m QP/60 dB?V/m AV ( power lines (AC)) at 0.5...300 MHz conforming to EN/IEC 55011Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10...150 kHz conforming to EN/IEC 55011Conducted emissions - test level: 63 dB?V/m QP ( power lines) at 1.5...30 MHz conforming to EN/IEC 55011Radiated emissions - test level: 40 dB?V/m QP class A ( 10 m) at 30...230 MHz conforming to EN/IEC 55011Conducted emissions - test level: 79...63 dB?V/m QP ( power lines) at 150...1500 kHz conforming to EN/IEC 55011Radiated emissions - test level: 47 dB?V/m QP class A ( 10 m) at 200...1000 MHz conforming to EN/IEC 55011 |
| Immunity to microbreaks: | 10 ms |
| Ambient air temperature for operation: | -10...55 °C (horizontal installation)-10...35 °C (vertical installation) |
| Ambient air temperature for storage: | -25...70 °C |
| Relative humidity: | 10...95 %, without condensation (in operation)10...95 %, without condensation (in storage) |
| IP degree of protection: | IP20 with protective cover in place |
| Pollution degree: | |
| Operating altitude: | 0...2000 m |
| Storage altitude: | 0...3000 m |
| Vibration resistance: | 3.5 mm at 5...8.4 Hz on symmetrical rail3.5 mm at 5...8.4 Hz on panel mounting1 gn at 8.4...150 Hz on symmetrical rail1 gn at 8.4...150 Hz on panel mounting |
| Shock resistance: | 98 m/s² for 11 ms |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480648731 |
|---|
