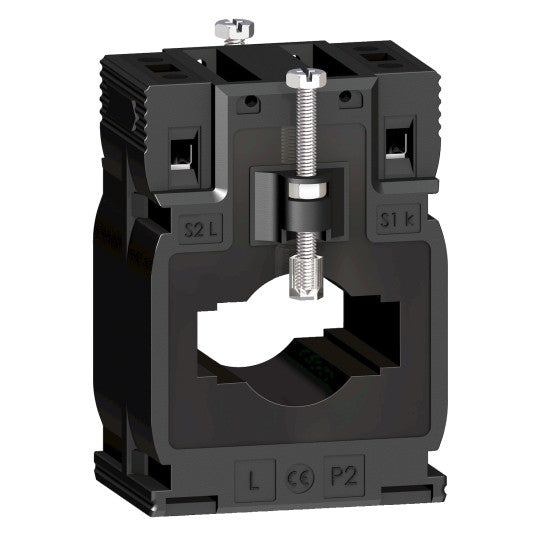

current transformer tropicalised DIN mount 250 5 cables d. 26 - bars 12x40 15x32 - METSECT5MB025
DESCRIPTION
| Range: | PowerLogic |
|---|---|
| Range of product: | PowerLogic CT |
| Product name: | CT |
| Product or component type: | Current transformer |
| Secondary current: | 5 A |
| Accuracy class: | Class 0.5 at 4 VAClass 1 at 6 VA |
| [In] rated current: | 250 A |
| Current transformer type: | Tropicalised for busbar and cable |
|---|---|
| Current transformer ratio: | 250/5 |
| [Ith] conventional free air thermal current: | 15 kA |
| Dynamic withstand current: | 2.5 Ith |
| Maximum safety factor: | 5 |
| [Ue] rated operational voltage: | |
| [Ui] rated insulation voltage: | 3 kV |
| Mounting mode: | Insulated locking screwBy screwsClip-on |
| Mounting support: | Mounting plateDIN railBusbar |
| Width: | 60 mm outside: |
| Height: | 85 mm outside: |
| Depth: | 43 mm frame: 63 mm total: |
| Diameter: | 26 mm |
| Product weight: | 0.305 kg |
| [Uimp] rated impulse withstand voltage: | 3 kV |
| Electrical insulation class: | Class B |
| Cable outer diameter: | 26 mm |
| Opening of bars: | 32.5 x 15.540.5 x 12.5 |
| Sealing: | Without |
| Compatibility code: | MB |
| Standards: | IEC 61869-2VDE 0414 |
|---|---|
| Product certifications: | CE |
| IP degree of protection: | IP20 |
| Relative humidity: | 0...95 % |
| Ambient air temperature for operation: | -25...60 °C |
| EU RoHS Directive: | CompliantChina RoHS Regulation |
| Code EAN: | 3606480618758 |
|---|
