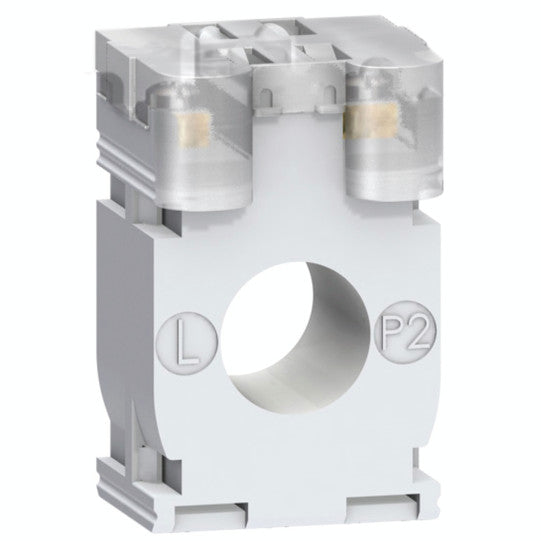

current transformer tropicalised DIN mount 75 5 for cables d. 21 - METSECT5CC008
DESCRIPTION
| Range: | PowerLogic |
|---|---|
| Range of product: | PowerLogic CT |
| Product name: | CT |
| Product or component type: | Current transformer |
| Secondary current: | 5 A |
| Accuracy class: | Class 1 at 1.5 VAClass 3 at 2.5 VA |
| [In] rated current: | 75 A |
| Current transformer type: | Tropicalised for cable |
|---|---|
| Current transformer ratio: | 75/5 |
| [Ith] conventional free air thermal current: | 4.5 kA |
| Dynamic withstand current: | 2.5 Ith |
| Maximum safety factor: | 5 |
| [Ue] rated operational voltage: | |
| [Ui] rated insulation voltage: | 3 kV |
| Mounting mode: | Clip-onBy screws |
| Mounting support: | DIN railMounting plate |
| Width: | 44 mm outside: |
| Height: | 65 mm outside: |
| Depth: | 30 mm frame: 37 mm total: |
| Diameter: | 21 mm |
| Product weight: | 0.19 kg |
| [Uimp] rated impulse withstand voltage: | 3 kV |
| Electrical insulation class: | Class B |
| Cable outer diameter: | 21 mm |
| Sealing: | With |
| Compatibility code: | CC |
| Standards: | IEC 61869-2VDE 0414 |
|---|---|
| Product certifications: | CEEAC |
| IP degree of protection: | IP20 |
| Relative humidity: | 0...95 % |
| Ambient air temperature for operation: | -25...60 °C |
| EU RoHS Directive: | CompliantChina RoHS Regulation |
| Code EAN: | 3303431123421 |
|---|
