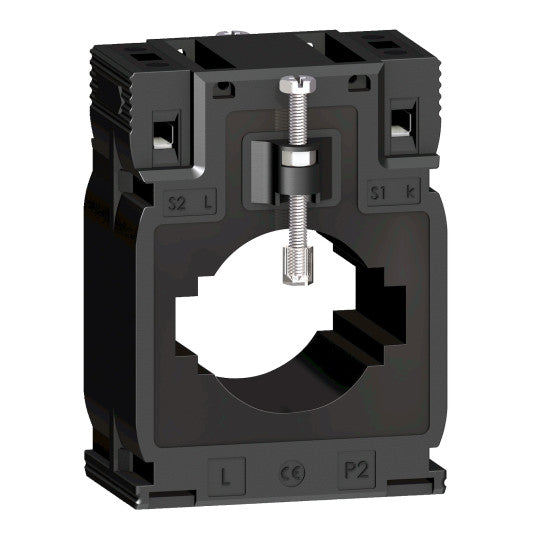

current transformer tropicalised DIN mount 800 5 cables d. 40 - bars 12x50 20x40 - METSECT5MD080
SKU : METSECT5MD080
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
current transformer tropicalised DIN mount 800 5 cables d. 40 - bars 12x50 20x40 - METSECT5MD080
DESCRIPTION
| Range: | PowerLogic |
|---|---|
| Range of product: | PowerLogic CT |
| Product name: | CT |
| Product or component type: | Current transformer |
| Secondary current: | 5 A |
| Accuracy class: | Class 0.5 at 8 VAClass 1 at 12 VA |
| [In] rated current: | 800 A |
| Current transformer type: | Tropicalised for busbar and cable |
|---|---|
| Current transformer ratio: | 800/5 |
| [Ith] conventional free air thermal current: | 48 kA |
| Dynamic withstand current: | 2.5 Ith |
| Maximum safety factor: | 5 |
| [Ue] rated operational voltage: | |
| [Ui] rated insulation voltage: | 3 kV |
| Mounting mode: | By screwsClip-onInsulated locking screw |
| Mounting support: | BusbarMounting plateDIN rail |
| Width: | 70 mm outside: |
| Height: | 95 mm outside: |
| Depth: | 45 mm frame: 65 mm total: |
| Diameter: | 40 mm |
| Product weight: | 0.369 kg |
| [Uimp] rated impulse withstand voltage: | 3 kV |
| Electrical insulation class: | Class B |
| Cable outer diameter: | 40 mm |
| Opening of bars: | 50.5 x 12.540.5 x 20.5 |
| Sealing: | Without |
| Compatibility code: | MD |
| Standards: | VDE 0414IEC 61869-2 |
|---|---|
| Product certifications: | CE |
| IP degree of protection: | IP20 |
| Relative humidity: | 0...95 % |
| Ambient air temperature for operation: | -25...60 °C |
| EU RoHS Directive: | CompliantChina RoHS Regulation |
| Code EAN: | 3606480618895 |
|---|
