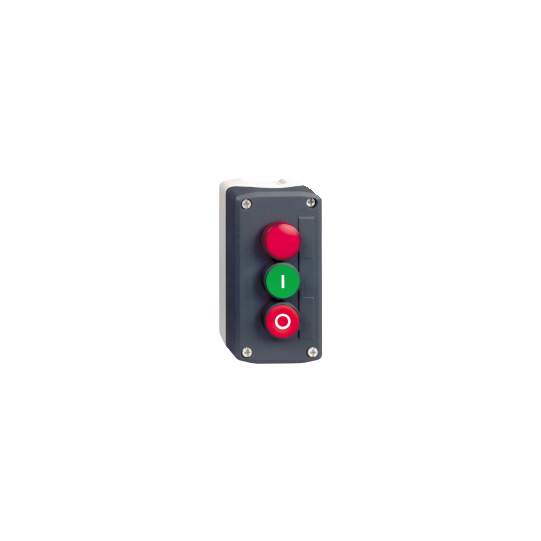

dark grey station - green flush/red flush pushbuttons Ø22 and red pilot light - XALD363G
SKU : XALD363G
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
dark grey station - green flush/red flush pushbuttons Ø22 and red pilot light - XALD363G
DESCRIPTION
| Range of product: | Harmony XALD |
|---|---|
| Product or component type: | Complete control station |
| Device short name: | XALD |
| Product destination: | For XB5 Ø 22 mm control and signalling units |
| Control station application: | Start-Stop function |
| Colour of base of enclosure: | Light grey (RAL 7035) |
| Colour of cover: | Dark grey (RAL 7016) |
| Material: | Polycarbonate |
| Operator profile: | 2 flush push-buttons - 1 central pilot light |
| Operators description: | Green ''I'' 1 NO - red ''O'' 1 NC |
| Control station composition: | 1 flush push-button, green 1 NO I marking1 flush push-button, red 1 NC O marking1 pilot light |
| Marking location: | Marking on push-button |
| Contact operation: | Slow-break |
| Light source: | Integrated and protected LED |
| Light source colour: | Red |
| [Us] rated supply voltage: | 120 V AC |
| Cable entry: | 2 knock-outs for cable entry, clamping capacity: 14 mm2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
|---|---|
| Product weight: | 0.261 kg |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| Colour of marking: | Black marking when white capsWhite marking when green, red or black caps |
| Positive opening: | With conforming to EN/IEC 60947-5-1 appendix K |
| Operating travel: | 1.5 mm (NC changing electrical state)2.6 mm (NO changing electrical state)4.3 mm (total travel) |
| Operating force: | 3.5 N NC changing electrical state3.8 N NO changing electrical state |
| Mechanical durability: | 10000000 cycles |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
| Tightening torque: | 0.8...1.2 N.m conforming to EN/IEC 60947-1 |
| Shape of screw head: | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material: | Silver alloy (Ag/Ni) |
| Short-circuit protection: | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current: | 10 A conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-1 |
| [Ie] rated operational current: | 6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-13 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-11.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-10.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1 |
| Electrical durability: | 1000000 cycles, AC-15, 2 A at 230 V, operating rate 1000000 cycles, AC-15, 3 A at 120 V, operating rate 1000000 cycles, AC-15, 4 A at 24 V, operating rate 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate |
| Electrical reliability: | ? ? |
| Signalling type: | Steady |
| Current consumption: | 14 mA |
| Service life: | 100000 h at rated voltage and 25 °C |
| Surge withstand: | 1 kV conforming to IEC 61000-4-5 |
| Compatibility code: | XALD |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK05 conforming to EN 50102 |
| Standards: | UL 508EN/IEC 60947-1EN/IEC 60947-5-4JIS C8201-5-1EN/IEC 60947-5-1EN/IEC 60947-5-5CSA C22.2 No 14JIS C8201-1 |
| Vibration resistance: | 5 gn (f= 12...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance to fast transients: | 2 kV conforming to IEC 61000-4-4 |
| Resistance to electromagnetic fields: | 10 V/m conforming to IEC 61000-4-3 |
| Resistance to electrostatic discharge: | 6 kV on contact (on metal parts) conforming to IEC 61000-4-28 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic emission: | Class B conforming to IEC 55011 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110114508 |
|---|
