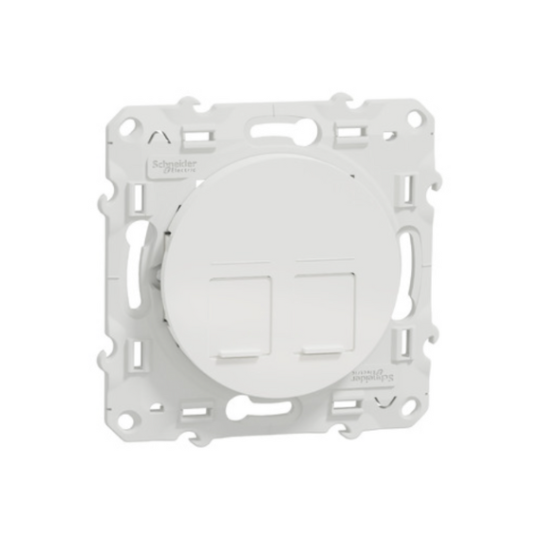

Data socket, Odace, mechanism with fixing frame, RJ45, UTP, IDC, white - S520485
SKU : S520485
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Data socket, Odace, mechanism with fixing frame, RJ45, UTP, IDC, white - S520485
DESCRIPTION
| Range: | Odace |
|---|---|
| Range of product: | Odace |
| Product or component type: | Data socket |
| Device presentation: | Mechanism with fixing frame |
| Data socket type: | RJ45 8 contact(s) Cat.6 |
| Type of packing: | Paint cover |
| Quantity per set: | Set of 10 |
| Main colour tint: | White |
| Device mounting: | Flush |
|---|---|
| Socket number: | 2 |
| Organization of wire: | Unshielded twisted pair |
| Cable shielding type: | UTP |
| Product compatibility: | Actassi s-oneInfraplus |
| Fixing mode: | By screws |
| Colour tint: | White (RAL 9003) |
| Surface finish: | Glossy |
| Connections - terminals: | IDC |
| Number of loop terminals: | 1 |
| Material: | Thermoplastic ABS-UV stabilised: centre platePBT (polybutylene terephthalate) GF30: support frame |
| Height: | 71 mm |
| Width: | 71 mm |
| Depth: | 41.7 mm |
| Embedding depth: | 25.7 mm |
| Net weight: | 0.05 kg |
| Targeted channel: | Professional |
| Resistance to chemical agents: | Resistant to alcohol (70 %)Resistant to alcohol (96 %)Resistant to A-Lactic AcidResistant to diluted quaternary ammoniumResistant to diluted bleachResistant to diluted ammoniaResistant to soapy waterResistant to crystal cleanerResistant to hydrogen peroxide 10 volumesResistant to hexane |
| Ambient air temperature for storage: | -5...50 °C |
|---|---|
| Ambient air temperature for operation: | 5...35 °C |
| Standards: | IEC 60603-7-5ISO/IEC 11801IEC 60603-7ANSI/TIA/EIA-568-B-2TIA/EIA-568ANSI/TIA/EIA-568-B-2-1EN 50173-1 |
| IP degree of protection: | IP21 |
| IK degree of protection: | IK04 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480319198 |
|---|
