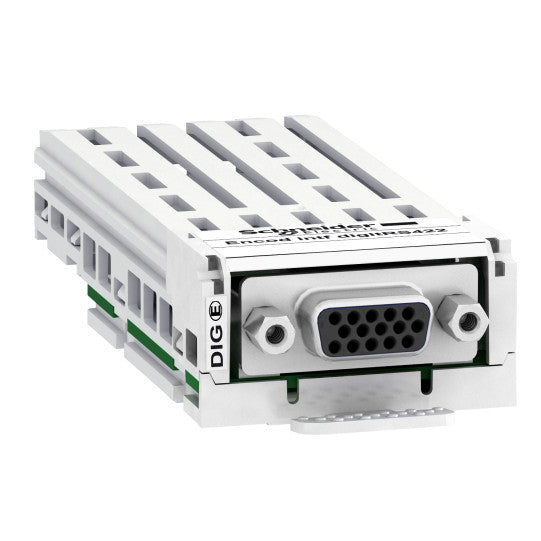

digital encoder interface module - VW3A3420
SKU : VW3A3420
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
digital encoder interface module - VW3A3420
DESCRIPTION
| Range of product: | Altivar |
|---|---|
| Product or component type: | Digital encoder interface module |
| Range compatibility: | Altivar Process ATV900Altivar Process ModularAltivar Machine ATV340 |
| Communication port protocol: | RS422 |
| Encoder type: | EnDat 2.2A/B/I incremental XCC1 type RA/B/I incremental XCC1 type XSSI absolute encoder XCC2 type SGSSI absolute encoder XCC3 type SB |
| [Us] rated supply voltage: | 5 V DC (voltage limits: 4.75...5.25 V)12 V DC (voltage limits: 11.4...12.6 V)24 V DC (voltage limits: 22.8...25.2 V) |
| Maximum supply current: | 0.25 A at 5 V DC0.1 A at 12 V DC0.05 A at 24 V DC |
|---|---|
| Protection type: | Short-circuit protectionOverload protection |
| Maximum cable distance between devices: | 100 m (A/B/I)50 m (SSI)100 m (SSI)at 300 kHz50 m (EnDat 2.2)100 m (EnDat 2.2)with propagation delay compensation |
| Maximum operating frequency: | 1000 kHz |
| Input signal: | Data+, Data- (EnDat 2.2)Data+, Data- (SSI)Temp+, Temp-A+,A-/B+,B-/I+,I- (A/B/I)TTL |
| Input impedance: | 121 Ohm |
| Output signal: | Clock+, Clock- (SSI)Data+, Data-, Clock+, Clock- (EnDat 2.2) |
| Connector type: | 1 female high density SUB-D 15 |
| Product weight: | 0.15 kg |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | X |
| Environmental Disclosure: | ENVPEP2010009EN |
| PVC free: | Yes |
| Code EAN: | 3606485441252 |
|---|
