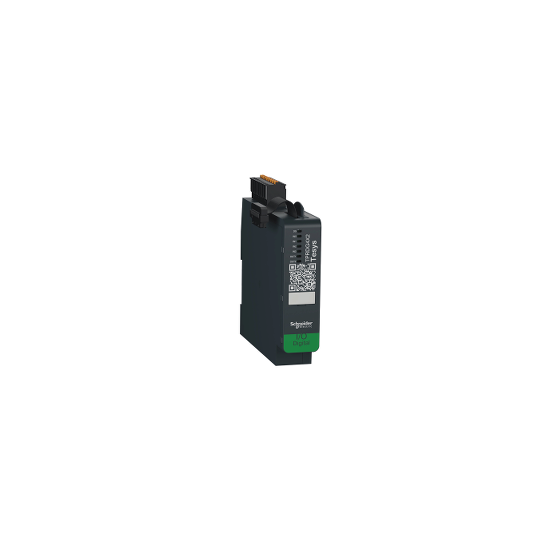

Digital IO module, TeSys island, 4 inputs, 2 outputs - TPRDG4X2
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys island |
| Device short name: | TPRDG |
| Product or component type: | Digital IO module |
| Device presentation: | IO module providing 4 digital inputs and 2 digital outputsEnabling advanced control functions in a TeSys island systemControl of third parties power devices when associated to a TPRPM power moduleOperational only when connected to a bus coupler TPRBC |
| Function of module: | Control of 4 sink/source digital inputs with common pointControl of 2 sink/source digital outputs with common point |
| Product compatibility: | TPRBC bus couplerTPRPM power module |
| Discrete input number: | 4 isolated with common point conforming to IEC 61131-2 Type 1 |
| Discrete input voltage: | 24 V DC (voltage limits: 19.2...28.8 V) |
| Discrete input current: | 7 mA at 24 V |
| Input impedance: | 3.43 kOhm |
| Discrete input logic: | Positive or negative, 0...5 V (state 0), 15...28.8 V (state 1) |
| Discrete output number: | 2 isolated with common point |
| Discrete output logic: | Source or sink |
| Discrete output voltage: | 24 V DC (voltage limit: 19.2...28.8 V) |
| Discrete output current: | 0.5 A maximum |
| Protection type: | 1 external fuse, 0.5 A fast fuse for each output |
| Response time: | 5 ms at 24 V for digital input5 ms at 24 V for digital output |
| Local signalling: | 1 LED (green/red) for DS (device status)1 LED (green) for I0 (input 1 status)1 LED (green) for I1 (input 2 status)1 LED (green) for I2 (input 3 status)1 LED (green) for I3 (input 4 status)1 LED (green) for Q0 (output 1 status)1 LED (green) for Q1 (output 2 status) |
| [Us] rated supply voltage: | 24 V DC supplied by the bus coupler |
|---|---|
| Current consumption: | 10 mA |
| Power dissipation in W: | 0.5 W maximum |
| [Uimp] rated impulse withstand voltage: | 0.5 kV conforming to IEC 61010-1 |
| Standards: | IEC 61010-2-201UL 61010-2-201CSA C22.2 No 61010-2-201 |
| Product certifications: | ULEAC (pending)CSA |
| Mounting mode: | Horizontal and vertical (35 mm symmetrical rail) |
| Connections - terminals: | Input/output circuit: removable spring terminal block 8 cable(s) 0.2...2.5 mm² (AWG 24...AWG 14) rigidInput/output circuit: removable spring terminal block 8 cable(s) 0.2...2.5 mm² (AWG 24...AWG 14) flexible without cable endInput/output circuit: removable spring terminal block 8 cable(s) 0.25...2.5 mm² (AWG 22...AWG 14) flexible with cable end |
| Width: | 25 mm |
| Height: | 118 mm |
| Depth: | 114 mm |
| Net weight: | 0.136 kg |
| Ambient air temperature for storage: | -25...70 °C |
|---|---|
| Ambient air temperature for operation: | -10...60 °C |
| Relative humidity: | 5...95 % |
| Operating altitude: | 0...2000 m without derating |
| IP degree of protection: | IP20 |
| Pollution degree: | 2 |
| Protective treatment: | TC |
| Fire resistance: | 960 °C conforming to UL 94 |
| Shock resistance: | 15 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Vibration resistance: | 1.5 mm peak to peak (f= 3...13 Hz) conforming to IEC 60068-2-61 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic compatibility: | Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3Fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4Surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606489832896 |
|---|
