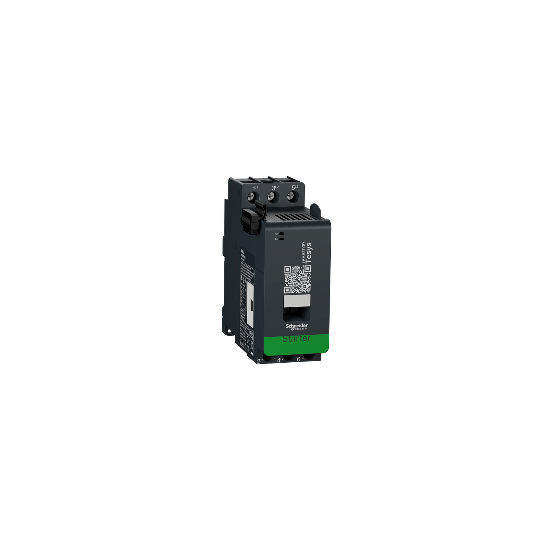

Direct online starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp - TPRST009
SKU : TPRST009
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Direct online starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp - TPRST009
DESCRIPTION
| Range: | TeSys |
|---|---|
| Product name: | TeSys island |
| Device short name: | TPRST |
| Product or component type: | Motor starter |
| Motor starter type: | Direct on line |
| Device presentation: | Direct starter connected to an automation controller through a bus couplerOperational only when connected to a bus coupler |
| Function available: | Upstream voltage presence detectionElectrical line and load protectionPower and energy monitoring when connected with TPRVM voltage module |
| Product compatibility: | TPRBC bus couplerTPRVM voltage interface module |
| Poles description: | 3P (3 NO) |
| Utilisation category: | AC-1AC-2AC-3AC-4 |
| Motor power kW: | 2.2 kW at 230 V 50 Hz (AC-3)4 kW at 380...415 V 50 Hz (AC-3)4 kW at 440 V 50 Hz (AC-3)5.5 kW at 500 V 50 Hz (AC-3)5.5 kW at 690 V 50 Hz (AC-3) |
| Motor power hp: | 0.33 hp at 120 V AC 60 Hz for 1 phase motors1 hp at 240 V AC 60 Hz for 1 phase motors2 hp at 208 V AC 60 Hz for 3 phases motors2 hp at 240 V AC 60 Hz for 3 phases motors5 hp at 480 V AC 60 Hz for 3 phases motors7.5 hp at 600 V AC 60 Hz for 3 phases motors |
| [Ue] rated operational voltage: | |
| [Ie] rated operational current: | 9 A (at 15 A (at |
| [Ith] conventional free air thermal current: | 15 A (at 50 °C) |
| [Ui] rated insulation voltage: | 690 V conforming to IEC 60947-4-1600 V conforming to UL 60947-4-1600 V conforming to CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-1 |
| Overvoltage category: | III |
| Thermal protection adjustment range: | 0.18...9 A |
| Thermal overload class: | Class 5...30 |
| Reset: | Remotely or automatically |
| Irms rated making capacity: | 250 A at 440 V conforming to IEC 60947 |
| Rated breaking capacity: | 250 A at 440 V conforming to IEC 60947 |
| [Icw] rated short-time withstand current: | 210 A 40 °C - 1 s105 A 40 °C - 10 s61 A 40 °C - 1 min30 A 40 °C - 10 min |
| Average impedance: | 2.5 mOhm - Ith 15 A 50 Hz |
| Power dissipation per pole: | 0.2 W AC-3 - Ith 9 A0.56 W AC-1 - Ith 15 A |
| [Uc] control circuit voltage: | 24 V DC supplied by the bus coupler |
| Current consumption: | 160 mA contactor sealed160 mA contactor closing |
| Power dissipation in W: | 3.5 W at Ie AC-3 |
| Mechanical durability: | 30 Mcycles |
|---|---|
| Electrical durability: | 2 Mcycles 9 A AC-3 at Ue 440 V1.2 Mcycles 15 A AC-1 at Ue 440 V |
| Maximum operating rate: | 3600 cyc/mn AC-3 |
| Operating time: | |
| Safety reliability level: | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Protection type: | Thermal overload protectionMotor overheatOvercurrentUndercurrentJamLong startStallRapid cycle lockoutPhase sequenceRapid restart lockoutPhase reversalPhase lossPhase unbalanceGround current |
| Metering type: | Time device ONTime device switch ONNumber of faultsNumber of switching cyclesNumber of device power cyclesAverage current IavgAverage voltage VavgMax current ImaxMax voltage VmaxActive and reactive power with voltage moduleActive and reactive energy with voltage moduleTrue power factor with voltage module |
| Local signalling: | 1 LED (green/red) for DS (device status)1 LED (green/red) for LS (load status) |
| Standards: | EN/IEC 60947-1EN/IEC 60947-4-1UL 60947-4-1CSA C22.2 No 60947-4-1 |
| Product certifications: | EACCSACCCUL |
| Mounting mode: | Horizontal and vertical (35 mm symmetrical DIN rail) |
| Connections - terminals: | Screw-clamp terminals 1 cable(s) 1...4 mm² (AWG 16...AWG 12) rigidScrew-clamp terminals 2 cable(s) 1...4 mm² (AWG 16...AWG 12) rigidScrew-clamp terminals 1 cable(s) 1.5...4 mm² (AWG 16...AWG 12) flexible without cable endScrew-clamp terminals 2 cable(s) 1.5...4 mm² (AWG 16...AWG 12) flexible without cable endScrew-clamp terminals 1 cable(s) 1...4 mm² (AWG 16...AWG 12) flexible with cable endScrew-clamp terminals 2 cable(s) 1...2.5 mm² (AWG 16...AWG 14) flexible with cable end |
| Tightening torque: | 1.7 N.m - with screwdriver flat Ø 6 mm1.7 N.m - with screwdriver Philips No 2 |
| Width: | 45 mm |
| Height: | 116 mm |
| Depth: | 115 mm |
| Net weight: | 0.656 kg |
| Ambient air temperature for storage: | -25...70 °C |
|---|---|
| Ambient air temperature for operation: | -10...50 °C without derating50...60 °C with current derating |
| Relative humidity: | 5...95 % |
| Operating altitude: | 0...2000 m without derating |
| IP degree of protection: | IP20 |
| Pollution degree: | 2 |
| Protective treatment: | TC |
| Fire resistance: | 960 °C conforming to UL 94850 °C conforming to IEC 60695-2-1650 °C conforming to IEC 60695-2-12 |
| Shock resistance: | 15 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Vibration resistance: | 1.5 mm peak to peak (f= 3...13 Hz) conforming to IEC 60068-2-61 gn (f= 13...200 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic compatibility: | Electrostatic discharge immunity test, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2Radiated RF field immunity test, level 3, 10 V/m, conforming to EN/IEC 61000-4-3Fast transient immunity test, level 4, 4 kV, conforming to EN/IEC 61000-4-4Surge immunity test (differential mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5Surge immunity test (common mode), level 4, 4 kV, conforming to EN/IEC 61000-4-5Conducted RF disturbance immunity test, 20 V, conforming to EN/IEC 61000-4-6 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606489832742 |
|---|
