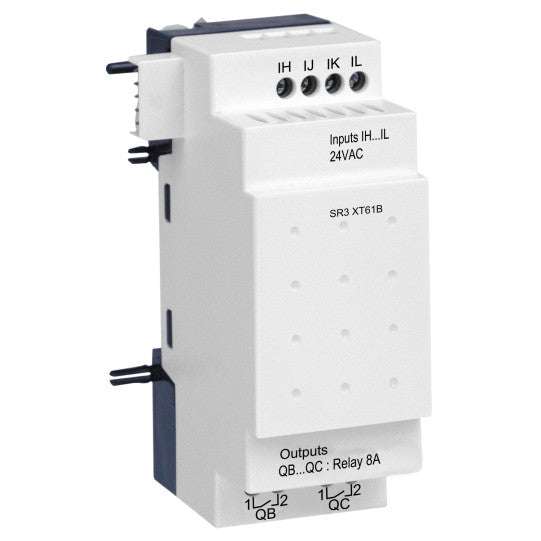

discrete I/O extension module - 6 I O - 24 V AC - for Zelio Logic - SR3XT61B
SKU : SR3XT61B
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
discrete I/O extension module - 6 I O - 24 V AC - for Zelio Logic - SR3XT61B
DESCRIPTION
| Range of product: | Zelio Logic |
|---|---|
| Product or component type: | Discrete I/O extension module |
| Number or control scheme lines: | 120 with ladder programming |
|---|---|
| Cycle time: | 6...90 ms |
| Backup time: | 10 years at 25 °C |
| Clock drift: | 12 min/year at 0...55 °C |
| Checks: | Program memory on each power up |
| [Us] rated supply voltage: | 24 V AC |
| Supply voltage limits: | 20.4...28.8 V |
| Supply frequency: | 50/60 Hz |
| Reverse polarity protection: | With |
| Discrete input number: | 4 |
| Discrete input voltage: | 24 V AC |
| Discrete input current: | 4.4 mA |
| Discrete input frequency: | 47...53 Hz57...63 Hz |
| Voltage state 1 guaranteed: | >= 14 V for discrete input |
| Voltage state 0 guaranteed: | |
| Current state 1 guaranteed: | >= 2 mA (discrete input) |
| Current state 0 guaranteed: | |
| Input impedance: | 4.6 kOhm for discrete input |
| Number of outputs: | 2 relay |
| Output voltage limits: | 5...30 V DC (relay output)24...250 V AC |
| Contacts type and composition: | NO for relay output |
| Output thermal current: | 8 A for all 2 outputs for relay output |
| Electrical durability: | AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1 |
| Switching capacity in mA: | >= 10 mA at 12 V (relay output) |
| Operating rate in Hz: | 0.1 Hz (at Ie) for relay output10 Hz (no load) for relay output |
| Mechanical durability: | 10000000 cycles for relay output |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to EN/IEC 60947-1 and EN/IEC 60664-1 |
| Response time: | 50 ms with ladder programming (from state 0 to state 1) for discrete input50 ms with ladder programming (from state 1 to state 0) for discrete input50...255 ms with FBD programming (from state 0 to state 1) for discrete input50...255 ms with FBD programming (from state 1 to state 0) for discrete input10 ms (from state 0 to state 1) for relay output5 ms (from state 1 to state 0) for relay output |
| Connections - terminals: | Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable endScrew terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable endScrew terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solidScrew terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solidScrew terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid |
| Tightening torque: | 0.5 N.m |
| Overvoltage category: | III conforming to EN/IEC 60664-1 |
| Product weight: | 0.125 kg |
| Product certifications: | CSAGLGOSTULC-Tick |
|---|---|
| Standards: | EN/IEC 61000-4-12EN/IEC 61000-4-6 level 3EN/IEC 61000-4-3EN/IEC 60068-2-27 EaEN/IEC 61000-4-4 level 3EN/IEC 61000-4-11EN/IEC 61000-4-5EN/IEC 61000-4-2 level 3EN/IEC 60068-2-6 Fc |
| IP degree of protection: | IP20 (terminal block) conforming to IEC 60529IP40 (front panel) conforming to IEC 60529 |
| Environmental characteristic: | EMC directive conforming to EN/IEC 61000-6-2EMC directive conforming to EN/IEC 61000-6-3EMC directive conforming to EN/IEC 61000-6-4EMC directive conforming to EN/IEC 61131-2 zone BLow voltage directive conforming to EN/IEC 61131-2 |
| Disturbance radiated/conducted: | Class B conforming to EN 55022-11 group 1 |
| Pollution degree: | 2 conforming to EN/IEC 61131-2 |
| Ambient air temperature for operation: | -20...40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2-20...55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2 |
| Ambient air temperature for storage: | -40...70 °C |
| Operating altitude: | 2000 m |
| Maximum altitude transport: | 3048 m |
| Relative humidity: | 95 % without condensation or dripping water |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110550177 |
|---|
