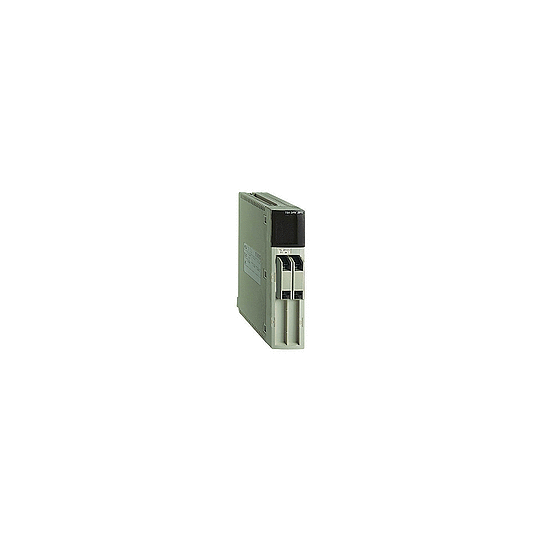

discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state - TSXDMY28FK
SKU : TSXDMY28FK
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
discrete I/O module Modicon Premium - 16 I 24 V DC - 12 O solid state - TSXDMY28FK
DESCRIPTION
| Range of product: | Modicon Premium Automation platform |
|---|---|
| Product or component type: | Discrete I/O modules |
| Discrete I/O number: | 28 |
| Discrete input number: | 16 current sink fast input conforming to IEC 1131-2 Type 1 |
| Input logic: | Positive |
| Input voltage: | 24 V 3.5 mA DC |
| Voltage state 1 guaranteed: | >= 11 V |
|---|---|
| Current state 1 guaranteed: | >= 3 mA |
| Voltage state 0 guaranteed: | |
| Current state 0 guaranteed: | |
| Sensor power supply: | 19...30 V |
| Filter time: | 0.1 to 7.5 ms by configuration4 ms by default |
| Paralleling of inputs: | Yes |
| Input compatibility: | 2-wire/3-wire proximity sensor |
| Insulation resistance: | > 10 MOhm 500 V DC |
| Power dissipation: | 1.2 W + 0.1 x number of input at 1 |
| Discrete output number: | 12 |
| Maximum tungsten load: | |
| Output voltage: | 24 V 0.5 A |
| Discrete output type: | Solid state |
| Output voltage limits: | 19...30 V |
| Maximum output current: | 4 A by module0.5 A by channel |
| Maximum leakage current: | 1 mA at state 0 |
| [Ures] residual voltage: | 1.2 V at state 1 |
| Minimum load impedance: | 48 W |
| Response time on output: | 0.6 ms |
| Switching frequency: | 0.5/LI² Hz |
| Output overvoltage protection: | By transil diode |
| Reverse polarity protection: | Reversed diode |
| Preactuator voltage detection threshold: | 16 V |
| Electrical connection: | 2 connectors HE-10 |
| Current consumption: | 300 mA at 5 V DC75 mA at 24 V DC |
| Module format: | Standard |
| Product weight: | 0.32 kg |
| Dielectric strength: | 1500 V 50/60 Hz for 1 minute |
|---|---|
| Derating factor: | 60 % of inputs at state 1 at 60 °C fast input60 % of the maximum current of the module at 60 °C solid state output |
| Ambient air temperature for operation: | 0...60 °C |
| Ambient air temperature for storage: | -25...70 °C |
| Relative humidity: | 5...95 % without condensation |
| Operating altitude: |
| Code EAN: | 3389110896404 |
|---|
