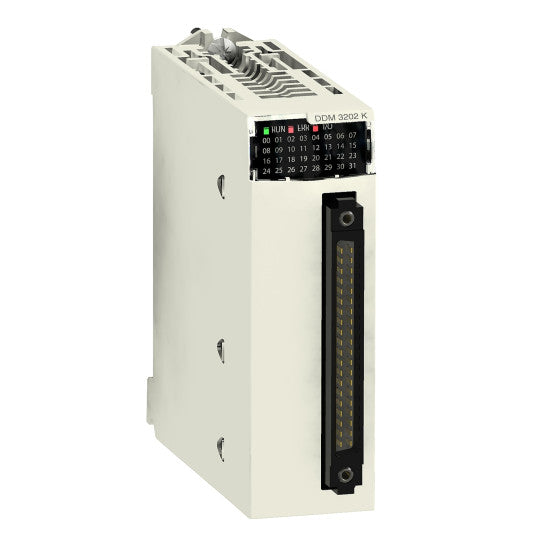

discrete I/O module X80 - 16 inputs - 24 V DC - 16 outputs - solid state - BMXDDM3202K
DESCRIPTION
| Range of product: | Modicon X80 |
|---|---|
| Product or component type: | Discrete I/O module |
| Discrete input number: | 16 |
| Input type: | Current sink (logic positive) |
| Discrete input voltage: | 24 V DC, discrete input logic: positive |
| Discrete input current: | 2.5 mA |
| Discrete output number: | 16 |
| Discrete output type: | Solid state |
| Discrete output voltage: | 24 V 19...30 V DC |
| Discrete output current: | 0.1 A |
| Input compatibility: | With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 1 |
|---|---|
| Voltage range: | 19...30 V |
| Current state 1 guaranteed: | >= 2 mA |
| Current state 0 guaranteed: | |
| Current per channel: | 0.125 A |
| Maximum current per module: | 3.2 A |
| Maximum leakage current: | 0.1 mA at state 0 |
| Maximum voltage drop: | |
| Input impedance: | 9600 Ohm |
| Insulation resistance: | > 10 MOhm 500 V DC |
| Power dissipation in W: | 4 W |
| DC typical filtering time: | 4 ms |
| DC maximum filtering time: | 7 ms |
| Response time on output: | 1.2 ms |
| Paralleling of outputs: | Yes |
| Typical current consumption: | 69 mA at 24 V DC125 mA at 3.3 V DC |
| Current consumption: | |
| MTBF reliability: | 650614 H |
| Protection type: | 1 external fuse per group of input channel0.5 A fast blow overvoltage protection on output reverse polarity protection on input reverse polarity protection on output |
| Output overload protection: | With electronic circuit breaker 0.125 A With current limiter |
| Output overvoltage protection: | With transil diode |
| Output short-circuit protection: | With 2 A external fuse |
| Reverse polarity protection: | Reverse mounted diode |
| Voltage detection threshold: | > 18 V DC preactuator OK> 18 V DC sensor OK |
| Maximum tungsten load: | 1.2 W |
| Switching frequency: | 0.5/LI² Hz |
| Maximum overload time: | 15 ms |
| Load impedance ohmic: | |
| Status LED: | 1 LED (green)module operating (RUN)1 LED per channel (green)channel diagnostic1 LED (red)module error (ERR)1 LED (red)module I/O |
| Product weight: | 0.11 kg |
| IP degree of protection: | IP20 |
|---|---|
| Directives: | 2014/35/EU - low voltage directive2014/30/EU - electromagnetic compatibility |
| Dielectric strength: | 1500 V AC at 50/60 Hz 1 minute, output/ground1500 V AC at 50/60 Hz 1 minute, output/internal logic1500 V AC at 50/60 Hz 1 minute, primary/secondary500 V DC 1 minute, between group of inputs and outputs |
| Vibration resistance: | 3 gn |
| Shock resistance: | 30 gn |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | 0...60 °C |
| Relative humidity: | 5...95 % at 55 °C without condensation |
| Operating altitude: | 0...2000 m2000...5000 m with derating factor |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3595863910636 |
|---|
