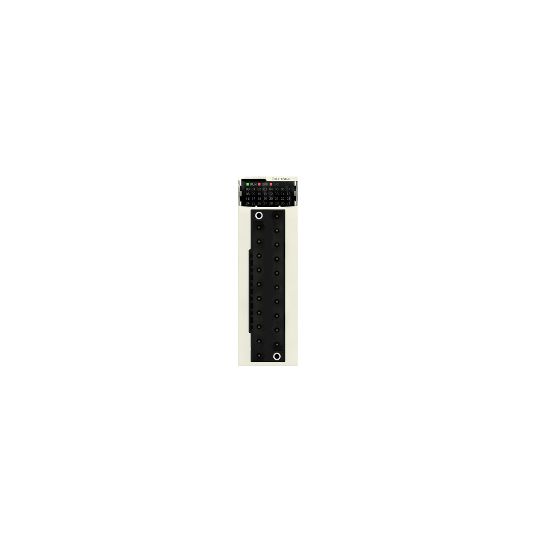

discrete input module X80 - 8 inputs - 200...240 V AC - BMXDAI0805
SKU : BMXDAI0805
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
discrete input module X80 - 8 inputs - 200...240 V AC - BMXDAI0805
DESCRIPTION
| Range of product: | Modicon X80 |
|---|---|
| Product or component type: | Discrete input module |
| Discrete input number: | 8 |
| Discrete input type: | Isolated |
| Input type: | Capacitive |
| Discrete input voltage: | 200...240 V AC |
| Discrete input current: | 10.4 mA |
| Input compatibility: | With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 Type 2 |
|---|---|
| Network frequency: | 50/60 Hz |
| Network frequency limits: | 47...63 Hz |
| Voltage range: | 170...264 V |
| Current state 1 guaranteed: | >= 6 mA |
| Current state 0 guaranteed: | |
| Input impedance: | 21000 Ohm |
| Insulation resistance: | > 10 MOhm 500 V DC |
| Power dissipation in W: | 4.73 W |
| AC activation filtering time: | 10 ms |
| AC deactivation filtering time: | 20 ms |
| Typical current consumption: | 76 mA at 3.3 V DC93.6 mA at 24 V DC |
| Current consumption: | |
| Protection type: | 1 external fuse per group of channel0.5 A fast blow |
| Voltage detection threshold: | > 164 V AC sensor OK |
| Status LED: | 1 LED (green)module operating (RUN)1 LED per channel (green)channel diagnostic1 LED (red)module error (ERR)1 LED (red)module I/O |
| Product weight: | 0.12 kg |
| IP degree of protection: | IP20 |
|---|---|
| Directives: | 2014/35/EU - low voltage directive2014/30/EU - electromagnetic compatibility |
| Dielectric strength: | 1500 V AC at 50/60 Hz 1 min |
| Vibration resistance: | 3 gn |
| Shock resistance: | 30 gn |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | 0...60 °C |
| Relative humidity: | 5...95 % at 55 °C without condensation |
| Operating altitude: | 0...2000 m2000...5000 m with derating factor |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3595864081595 |
|---|
