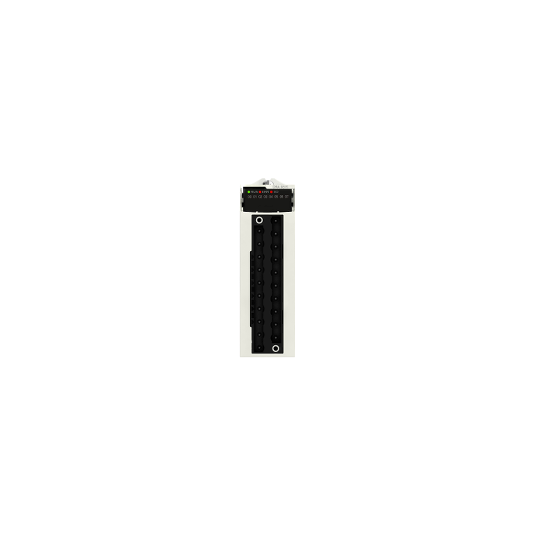

discrete module X80 - 8 NO Type A - Isolated relays - 125 V DC/250 V AC - BMXDRA0815
DESCRIPTION
| Range of product: | Modicon X80 |
|---|---|
| Product or component type: | Relay discrete output module |
| Discrete output number: | 8 conforming to EN/IEC 61131-2 |
| Discrete output logic: | Positive |
| Discrete output voltage: | 24...240 V 19...264 V AC24...125 V 5...150 V DC |
| Electrical connection: | 20 ways terminal block |
|---|---|
| Network frequency: | 50/60 Hz |
| Network frequency limits: | 47...63 Hz |
| Voltage range: | 5...150 V19...264 V |
| [Ith] conventional free air thermal current: | 3 A |
| Insulation resistance: | > 10 MOhm 500 V DC |
| Power dissipation in W: | 3.6 W |
| Response time on output: | |
| Typical current consumption: | 40 mA at 3.3 V DC101 mA at 24 V DC |
| MTBF reliability: | 3200000 H |
| Protection type: | External short-circuit protectionExternal overload protectionExternal overvoltage protection, inductive AC network External overvoltage protection, inductive DC network |
| Output overload protection: | Use 1 fast blow fuse per channel or group of channel |
| Output overvoltage protection: | Use discharge diode on each output DCUse RC circuit on each output ACUse ZNO surge limiter on each output AC |
| Output short-circuit protection: | Use 1 fast blow fuse per channel or group of channel |
| Minimum switching current: | 1 mA 5 V DC |
| Electrical durability: | AC-12: 200000 cycles at 48 VA 24 V at 0...60 °CAC-12: 300000 cycles at 48 VA 48 V at 0...60 °CAC-12: 150000 cycles at 96 VA 48 V at 0...60 °CAC-12: 300000 cycles at 110 VA 100...120 V at 0...60 °CAC-12: 150000 cycles at 220 VA 100...120 V at 0...60 °CAC-12: 300000 cycles at 220 VA 200...250 V at 0...60 °CAC-12: 150000 cycles at 500 VA 200...250 V at 0...60 °CAC-15: 700000 cycles at 10 VA 24 V at 0...60 °C (load factor 0.4)AC-15: 500000 cycles at 24 VA 24 V at 0...60 °C (load factor 0.4)AC-15: 200000 cycles at 48 VA 24 V at 0...60 °C (load factor 0.4)AC-15: 700000 cycles at 10 VA 48 V at 0...60 °C (load factor 0.4)AC-15: 500000 cycles at 24 VA 48 V at 0...60 °C (load factor 0.4)AC-15: 300000 cycles at 48 VA 48 V at 0...60 °C (load factor 0.4)AC-15: 100000 cycles at 96 VA 48 V at 0...60 °C (load factor 0.4)AC-15: 1000000 cycles at 10 VA 100...120 V at 0...60 °C (load factor 0.4)AC-15: 300000 cycles at 50 VA 100...120 V at 0...60 °C (load factor 0.4)AC-15: 200000 cycles at 110 VA 100...120 V at 0...60 °C (load factor 0.4)AC-15: 70000 cycles at 220 VA 100...120 V at 0...60 °C (load factor 0.4)AC-15: 1000000 cycles at 10 VA 200...250 V at 0...60 °C (load factor 0.4)AC-15: 500000 cycles at 50 VA 200...250 V at 0...60 °C (load factor 0.4)AC-15: 200000 cycles at 110 VA 200...250 V at 0...60 °C (load factor 0.4)AC-15: 150000 cycles at 220 VA 200...250 V at 0...60 °C (load factor 0.4)DC-12: 200000 cycles at 24 W 24 V at 0...60 °CDC-12: 150000 cycles at 48 W 24 V at 0...60 °CDC-12: 150000 cycles at 40 W 48...60 V at 0...60 °CDC-12: 100000 cycles at 45 W 100...125 V at 0...60 °CDC-13: 100000 cycles at 10 W 24 V at 0...60 °CDC-13: 60000 cycles at 24 W 24 V at 0...60 °CDC-13: 40000 cycles at 48 W 24 V at 0...60 °CDC-13: 40000 cycles at 40 W 48...60 V at 0...60 °CDC-13: 100000 cycles at 15 W 100...125 V at 0...60 °C |
| Status LED: | 1 LED (green) RUN1 LED per channel (green) channel diagnostic1 LED (red) ERR1 LED (red) I/O |
| Net weight: | 0.169 kg |
| IP degree of protection: | IP20 |
|---|---|
| Dielectric strength: | 1780 V AC at 50/60 Hz 1 min |
| Vibration resistance: | 3 gn |
| Shock resistance: | 30 gn |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | 0...60 °C |
| Relative humidity: | 0...95 % at 60 °C without condensation |
| Operating altitude: | 0...2000 m2000...5000 m with derating factor |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606481275608 |
|---|
