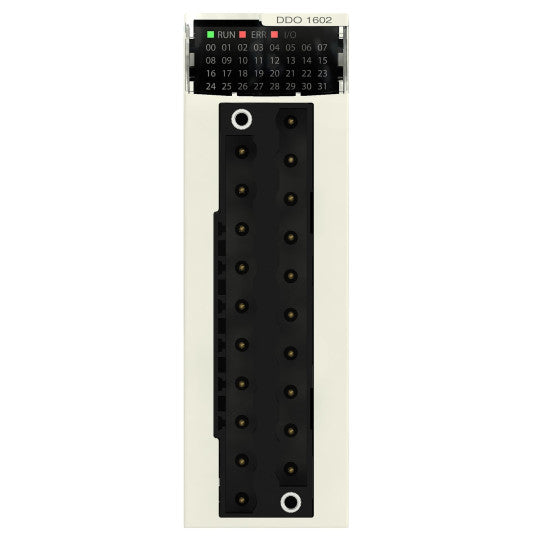

discrete output module X80 - 16 outputs - 24 V DC positive - BMXDDO1602
SKU : BMXDDO1602
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
discrete output module X80 - 16 outputs - 24 V DC positive - BMXDDO1602
DESCRIPTION
| Range of product: | Modicon X80 |
|---|---|
| Product or component type: | Discrete output module |
| Discrete output number: | 16 conforming to EN/IEC 61131-2 |
| Discrete output type: | Solid state |
| Discrete output logic: | Positive |
| Discrete output voltage: | 24 V 19...30 V DC |
| Discrete output current: | 0.5 A |
| Current per channel: | 0.625 A |
|---|---|
| Maximum current per module: | 10 A |
| Maximum leakage current: | 0.5 mA at state 0 |
| Maximum voltage drop: | |
| Insulation resistance: | > 10 MOhm 500 V DC |
| Power dissipation in W: | 4 W |
| Response time on output: | 1.2 ms |
| Paralleling of outputs: | Yes |
| Typical current consumption: | 79 mA at 3.3 V DC |
| MTBF reliability: | 392285 H |
| Protection type: | reverse polarity protectionExternal short-circuit protection overload protection overvoltage protection |
| Output overload protection: | With electronic circuit breaker 1.5 In With current limiter |
| Output overvoltage protection: | With transil diode |
| Output short-circuit protection: | With 2 A external fuse |
| Reverse polarity protection: | Reverse mounted diode |
| Voltage detection threshold: | > 18 V DC preactuator at state 0 |
| Maximum tungsten load: | 6 W |
| Switching frequency: | 0.5/LI² Hz |
| Load impedance ohmic: | > 48 Ohm |
| Status LED: | 1 LED (green)module operating (RUN)1 LED per channel (green)channel diagnostic1 LED (red)module error (ERR)1 LED (red)module I/O |
| Product weight: | 0.12 kg |
| IP degree of protection: | IP20 |
|---|---|
| Directives: | 2014/35/EU - low voltage directive2014/30/EU - electromagnetic compatibility |
| Dielectric strength: | 1500 V AC at 50/60 Hz 1 minute, output/ground1500 V AC at 50/60 Hz 1 minute, output/internal logic |
| Vibration resistance: | 3 gn |
| Shock resistance: | 30 gn |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | 0...60 °C |
| Relative humidity: | 5...95 % at 55 °C without condensation |
| Operating altitude: | 0...2000 m2000...5000 m with derating factor |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3595863910469 |
|---|
