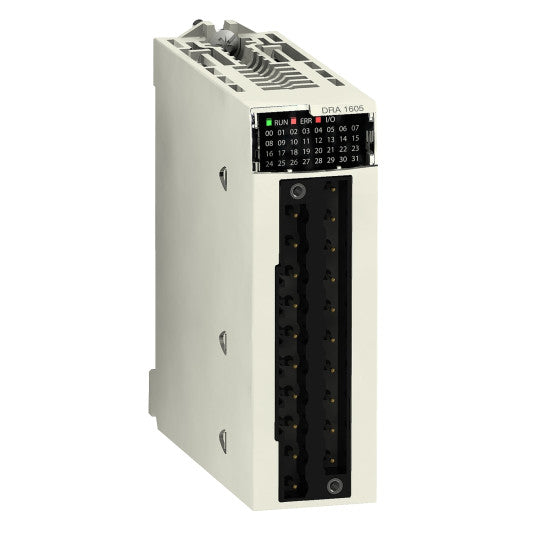

discrete output module X80 - 16 outputs - relay - 24 V DC or 24...240 V AC - BMXDRA1605
SKU : BMXDRA1605
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
discrete output module X80 - 16 outputs - relay - 24 V DC or 24...240 V AC - BMXDRA1605
DESCRIPTION
| Range of product: | Modicon X80 |
|---|---|
| Product or component type: | Discrete output module |
| Discrete output number: | 16 conforming to EN/IEC 61131-2 |
| Discrete output type: | Relay |
| Discrete output voltage: | 24 V 19...30 V DC240 V 19...264 V AC |
| [Ith] conventional free air thermal current: | 2 A |
|---|---|
| Insulation resistance: | > 10 MOhm 500 V DC |
| Power dissipation in W: | 3 W |
| Response time on output: | |
| Typical current consumption: | 79 mA at 3.3 V DC |
| MTBF reliability: | 1357810 H |
| Output overload protection: | Use 1 fast blow fuse per channel or group of channel |
| Output overvoltage protection: | Use discharge diode on each output DCUse RC circuit on each output ACUse ZNO surge limiter on each output AC |
| Output short-circuit protection: | Use 1 fast blow fuse per channel or group of channel |
| Minimum switching current: | 1 mA 5 V DC |
| Electrical durability: | AC-15: 100000 cycles at 240 VA 200 V (load factor 0.7)AC-15: 100000 cycles at 120 VA 200 V (load factor 0.35)AC-12: 100000 cycles at 200 VA 100 VAC-12: 100000 cycles at 80 VA 48 VAC-12: 100000 cycles at 50 VA 24 VAC-15: 100000 cycles at 120 VA 100 VAC-15: 100000 cycles at 120 VA 24 VAC-15: 100000 cycles at 120 VA 48 VDC-12: 100000 cycles at 24 W 24 VDC-13: 100000 cycles at 10 W 24 VDC-13: 100000 cycles at 10 W 48 VAC-15: 300000 cycles at 72 VA 200 V (load factor 0.7)AC-15: 300000 cycles at 36 VA 200 V (load factor 0.35)AC-12: 300000 cycles at 200 VA 200 VAC-12: 300000 cycles at 80 VA 100 VAC-12: 300000 cycles at 50 VA 48 VAC-15: 300000 cycles at 36 VA 100 VAC-15: 300000 cycles at 72 VA 100 VAC-15: 300000 cycles at 36 VA 48 VAC-15: 300000 cycles at 72 VA 48 VAC-15: 300000 cycles at 36 VA 24 VAC-15: 300000 cycles at 72 VA 24 VDC-13: 300000 cycles at 3 W 24 VDC-13: 300000 cycles at 3 W 48 VDC-13: 7000 cycles at 24 W 24 VDC-13: 7000 cycles at 24 W 48 VDC-12: 50000 cycles at 24 W 48 V |
| Status LED: | 1 LED (green)RUN1 LED per channel (green)channel diagnostic1 LED (red)ERR1 LED (red)I/O |
| Product weight: | 0.15 kg |
| IP degree of protection: | IP20 |
|---|---|
| Dielectric strength: | 2000 V AC at 50/60 Hz 1 min |
| Vibration resistance: | 3 gn |
| Shock resistance: | 30 gn |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | 0...60 °C |
| Relative humidity: | 5...95 % at 55 °C without condensation |
| Operating altitude: | 0...2000 m2000...5000 m with derating factor |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3595863909234 |
|---|
