Distribution block, Linergy DX, 4P, 63A, 4 modules, 24 holes, quick connection top - LVS04040
SKU : LVS04040
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation

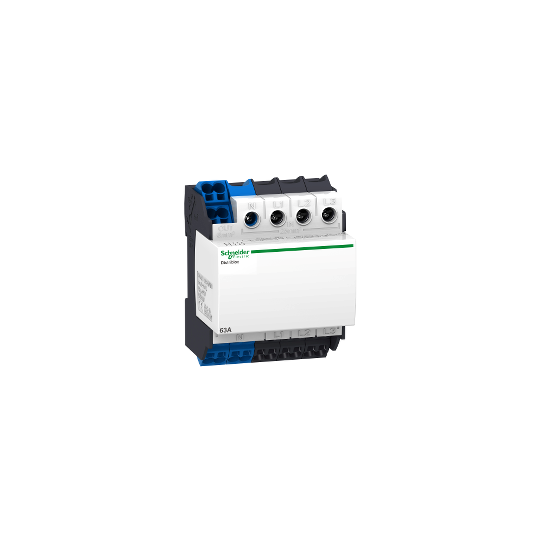

Distribution block, Linergy DX, 4P, 63A, 4 modules, 24 holes, quick connection top - LVS04040
DESCRIPTION
| Range: | Linergy |
|---|---|
| Product or component type: | Distribution block |
| Product name: | Linergy DX |
| Range compatibility: | PrismaPrismaSeTPragma |
| Product compatibility: | Spacial enclosures |
| IP degree of protection: | IPxx B |
| Location of connection: | Top |
|---|---|
| Mounting support: | DIN rail |
| Poles description: | 4P |
| [Ue] rated operational voltage: | 440 V AC |
| [Ui] rated insulation voltage: | 500 V AC |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| [Ie] rated operational current: | 63 A at 40 °C |
| [In] rated current: | 63 A at 40 °C |
| Connections - terminals: | Supply: tunnel type terminal16 mm² (flexible) Supply: tunnel type terminal25 mm² (rigid) Distribution: spring terminal (phase) , 12 x 2.5...6 mm² (flexible) Distribution: spring terminal (phase) , 12 x 2.5...6 mm² (rigid) Distribution: spring terminal (neutral) , 12 x 2.5...6 mm² (flexible) Distribution: spring terminal (neutral) , 12 x 2.5...6 mm² (rigid) |
| 9 mm pitches: | 8 |
| Total number of 18 mm modules: | 4 |
| Net weight: | 0.29 kg |
| Compatibility code: | DISTRIBLOC |
| Market segment: | Small commercialSmall buildingsResidential |
| Pollution degree: | 3 |
|---|---|
| Resistance to incandescent wire: | 960 °C conforming to IEC 60695-2-11 |
| Standards: | IEC 60947-7-1IEC 61439-2IEC 61439-1 |
| Product certifications: | ASEFA |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606482164567 |
|---|
