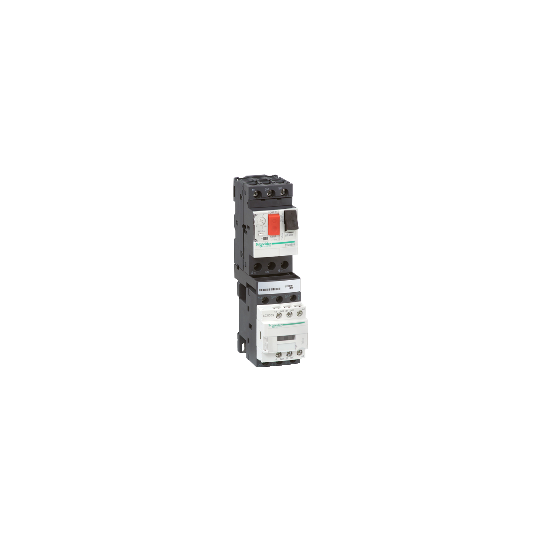

DOL combination starter , TeSys Deca, 1.6...2.5 A , 24 V DC - GV2DM107BD
DESCRIPTION
| Range of product: | TeSysTeSys Deca |
|---|---|
| Device short name: | GV2DM |
| Product or component type: | Motor starter |
| Motor starter type: | Non reversing |
| Coordination type: | Type 1 |
| Poles description: | 3P |
| Utilisation category: | AC-3 |
| Motor power kW: | 0.75 kW at 400/415 V AC 50/60 Hz1.1 kW at 500 V AC 50/60 Hz0.75 kW at 440 V AC 50/60 Hz1.1 kW at 440 V AC 50/60 Hz |
| [Uc] control circuit voltage: | 24 V DC |
| Magnetic tripping current: | 33.5 A |
| Device composition: | 1 combination block GV2AF31 3-pole contactor1 motor circuit breaker type GV2ME |
|---|---|
| Thermal protection adjustment range: | 1.6...2.5 A |
| Rated breaking capacity: | Iq 50 kA at 400/415 V conforming to IEC 60947-4-1Iq 50 kA at 440 V conforming to IEC 60947-4-1Iq 50 kA at 500 V conforming to IEC 60947-4-1 |
| Product weight: | 0.596 kg |
| Height: | 176.4 mm |
| Width: | 45 mm |
| Depth: | 99.6 mm |
| Compatibility code: | GV2DM |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| EU RoHS Directive: | Compliant |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP121004EN |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Code EAN: | 3389110817188 |
|---|
