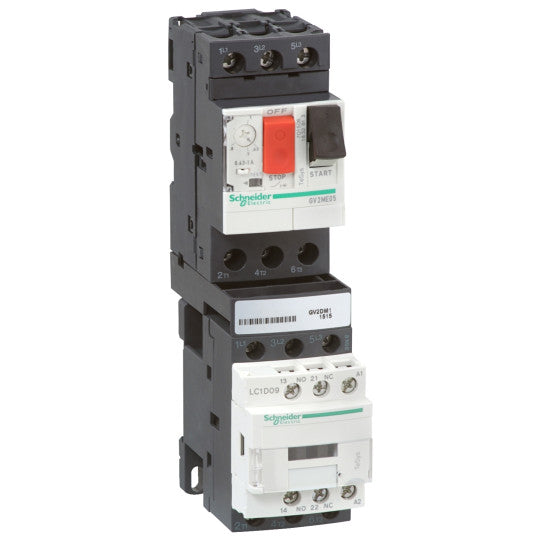

DOL combination starter - TeSys GV2-DM - 20...25 A - 24 V DC - GV2DM122BD
SKU : GV2DM122BD
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
DOL combination starter - TeSys GV2-DM - 20...25 A - 24 V DC - GV2DM122BD
DESCRIPTION
| Range of product: | TeSys |
|---|---|
| Device short name: | GV2DM |
| Product or component type: | Motor starter |
| Motor starter type: | Non reversing |
| Coordination type: | Type 1 |
| Poles description: | 3P |
| Utilisation category: | AC-3 |
| Motor power kW: | 11 kW at 400/415 V AC 50/60 Hz15 kW at 500 V AC 50/60 Hz |
| [Uc] control circuit voltage: | 24 V DC |
| Magnetic tripping current: | 327 A |
| Device composition: | 1 3-pole contactor1 combination block GV2AF31 motor circuit breaker type GV2ME |
|---|---|
| Thermal protection adjustment range: | 20...25 A |
| Rated breaking capacity: | Iq 15 kA at 400/415 V conforming to IEC 60947-4-1Iq 4 kA at 500 V conforming to IEC 60947-4-1Iq 6 kA at 440 V conforming to IEC 60947-4-1 |
| Product weight: | 0.646 kg |
| Height: | 186.8 mm |
| Width: | 45 mm |
| Depth: | 105.9 mm |
| Compatibility code: | GV2DM |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| EU RoHS Directive: | Compliant |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP121004EN |
| WEEE: | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
