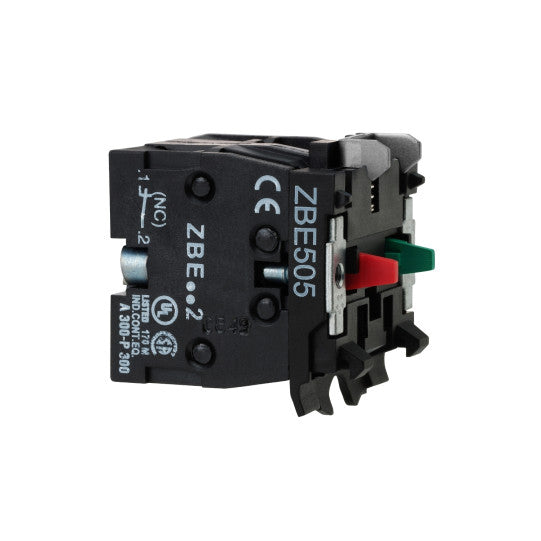

double contact block's for head Ø22 1NO+1NC screw clamp terminal - ZBE505
SKU : ZBE505
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
double contact block's for head Ø22 1NO+1NC screw clamp terminal - ZBE505
DESCRIPTION
| Range of product: | Harmony XB4Harmony XB5 |
|---|---|
| Product or component type: | Contact block |
| Device short name: | ZBE |
| Sale per indivisible quantity: | 1 |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Contact operation: | Slow-break |
| Contact block type: | Double |
| Contacts usage: | High power switching contacts |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, Screw clamp terminals, Screw clamp terminals, >= 1 x 0.5 mm² without cable end |
| Product weight: | 0.032 kg |
|---|---|
| Contacts type and composition: | 1 NO + 1 NC |
| Positive opening: | With |
| Mechanical durability: | 10000000 cycles |
| Short-circuit protection: | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current: | 10 A conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 300 V conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN 60947-1 |
| [Ie] rated operational current: | 1.1 A at 125 V, DC-13, P300 conforming to EN/IEC 60947-5-1 |
| Mounting of block: | Front mounting |
| Electrical composition code: | C15 (quantity |
| Compatibility code: | ZBE |
| Ambient air temperature for storage: | -40...70 °C |
|---|---|
| Ambient air temperature for operation: | -40...70 °C |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119042253 |
|---|
