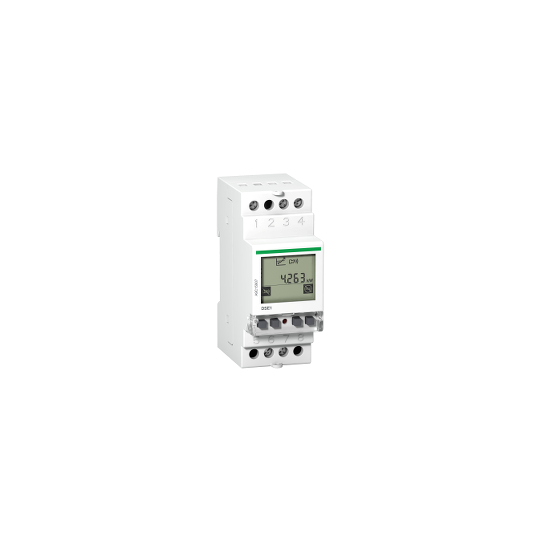

DSE1 - load-shedder - 1 channel - A9C15907
SKU : A9C15907
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
DSE1 - load-shedder - 1 channel - A9C15907
DESCRIPTION
| Range of product: | Acti9 |
|---|---|
| Range: | Acti9 |
| Product or component type: | Load-shedder |
| Device short name: | DSE1 |
| Number of channels: | 1 |
| Control and monitoring type: | Cascade |
| Poles description: | 1P |
| Setting: | 3.5...32 A +/- 1 % |
|---|---|
| Power consumption in VA: | 3.5 VA |
| [Ue] rated operational voltage: | 230 V AC +/- 10 % at 50/60 Hz |
| Rated current: | 32 A for priority circuit> 16 A relaying by contactor for non-priority circuit |
| Local signalling: | Load-shedding indication: 1 LED (red)Load-shedding indication: buzzer |
| Display type: | LCD screen |
| Maximum value measured: | 9.999 kW |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 4 |
| Connections - terminals: | Screw terminal6 mm² |
| IP degree of protection: | IP40IP20 |
| Height: | 87 mm |
| Width: | 36 mm |
| Depth: | 60 mm |
| Net weight: | 0.13 kg |
| Colour: | White (RAL 9003) |
| Compatibility code: | DSE1 |
| Ambient air temperature for operation: | -5...50 °C |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| EU RoHS Directive: | CompliantToxic heavy metal free |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480495946 |
|---|
