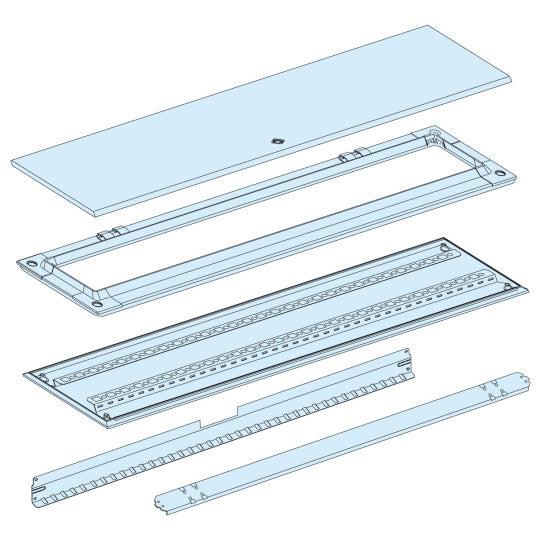

Duct (Rear Enclosure+Plain Door) W300 19M Prisma G IP55 - 08345
SKU : 8345
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Duct (Rear Enclosure+Plain Door) W300 19M Prisma G IP55 - 08345
DESCRIPTION
| Range: | Prisma |
|---|---|
| Range of product: | Prisma G |
| Product or component type: | DoorRear panel |
| Device application: | Low voltage electrical distribution |
| Enclosure type: | Functional enclosure delivered in kit form |
| Enclosure mounting: | Surface |
| Provided equipment: | 1 x door for enclosure |
| Additional information: | Can be combined side by side and one on top of another |
| Type of front cover: | Without |
| Number of vertical modules [50 mm]: | 19 |
| Number of 18 mm modules per row: | 10 |
| Standards: | IEC 62208IEC 61439-2IEC 61439-1 |
| [Ui] rated insulation voltage: | 1000 V |
|---|---|
| [In] rated current: | 630 A at 40 °C conforming to IEC 61439-2 |
| Electrical insulation class: | Class I |
| Protective treatment: | Electrophoresis treatment and hot-polymerised polyester epoxy powder |
| Surface finish: | MattSmooth |
| Colour: | White (RAL 9001) |
| Width: | 300 mm |
| Height: | 1050 mm |
| Depth: | 260 mm |
| Product weight: | 17.84 kg |
| Quantity per set: | Set of 1 |
| IP degree of protection: | IP55 with door |
|---|---|
| IK degree of protection: | IK10 with door conforming to EN/IEC 62262 |
| Mechanical robustness: | Seismic tests - 2.5G conforming to IEC 60068-2-57 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3303430083450 |
|---|
