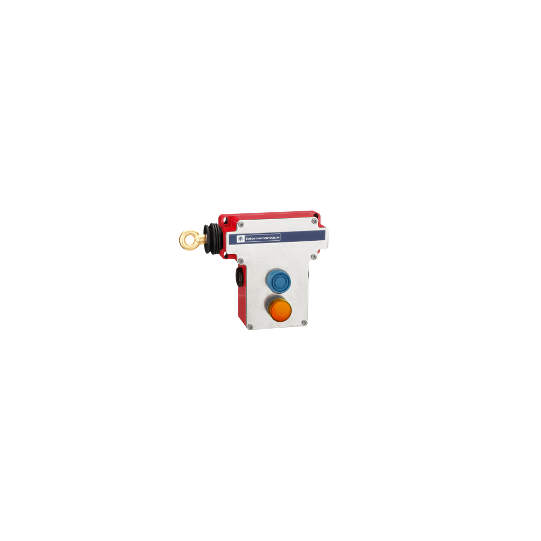

E-stop rope pull switch XY2CE - LH side - 2NC+2NO - pilot light 230V - boot. pb - Télémécanique - XY2CE2A297
SKU : XY2CE2A297
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
E-stop rope pull switch XY2CE - LH side - 2NC+2NO - pilot light 230V - boot. pb - Télémécanique - XY2CE2A297
DESCRIPTION
| Range of product: | Telemecanique Emergency stop rope pull switches XY2C |
|---|---|
| Product or component type: | Latching emergency stop rope pull switch |
| Device short name: | XY2CE |
| Housing colour: | Red RAL 3000 |
| Overvoltage category: | Class I conforming to EN/IEC 61140Class I conforming to NF C 20-030 |
| Local signalling: | With pilot light, yellow, 230 V |
|---|---|
| Number of cables: | 1 |
| Trigger cable maximum length: | 70 m |
| Body material: | Zamak |
| Cover material: | Stainless steel |
| Reset: | By booted push-button |
| [Us] rated supply voltage: | 230...240 V AC |
| Contacts type and composition: | 2 NC + 2 NO |
| Contact operation: | Slow-break |
| Trigger cable anchor point: | LH side |
| Light block supply: | Direct |
| Connections - terminals: | Screw clamp terminal, 1 x 0.5...2 x 1.5 mm² |
| Tightening torque: | 0.8...1.2 N.m |
| Cable entry number: | 3 plain hole for Pg 13.5 or ISO M20 cable gland |
| Safety level: | Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 |
| Safety reliability data: | B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear |
| Marking: | CE |
| Mechanical durability: | 60000 cycles |
| Distance between cable supports: | 5 m |
| [Ie] rated operational current: | 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 10 A |
| [Ui] rated insulation voltage: | 400 V (pollution degree 3) conforming to EN/IEC 60947-1300 V conforming to UL 508300 V conforming to CSA C22.2 No 14 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-1 |
| Positive opening: | With conforming to EN/IEC 60947-5-1 |
| Maximum resistance across terminals: | 25 MOhm conforming to EN/IEC 60255-7 category 325 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection: | 10 A cartridge fuse type gG conforming to EN/IEC 60269 |
| Terminals description ISO n°1: | (21-22)NC(13-14)NO |
| Net weight: | 1.47 kg |
| Compatibility code: | XY2CE |
| Standards: | EN/IEC 60947-5-5Work equipment directive 2009/104/ECEN/ISO 13850EN/IEC 60204-1UL 508EN/IEC 60947-5-1CSA C22.2 No 14Machinery directive 2006/42/EC |
|---|---|
| Product certifications: | UL category NISD emergency stop devicesCSACCC |
| Protective treatment: | TC |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 10 gn (f= 10...300 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance: | 50 gn 11 ms conforming to EN/IEC 60068-2-27 |
| IP degree of protection: | IP66 conforming to IEC 60529 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110318647 |
|---|
