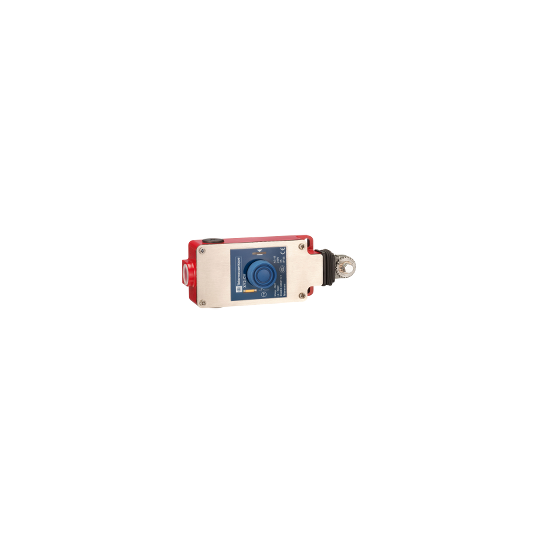

e-stop rope pull switch XY2CH - 1NC+1NO - booted pushbutton - Télémécanique - XY2CH13250H29
SKU : XY2CH13250H29
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
e-stop rope pull switch XY2CH - 1NC+1NO - booted pushbutton - Télémécanique - XY2CH13250H29
DESCRIPTION
| Range of product: | Telemecanique Emergency stop rope pull switches XY2C |
|---|---|
| Product or component type: | Latching emergency stop rope pull switch |
| Device short name: | XY2CH |
| Housing colour: | Red RAL 3000 |
| Overvoltage category: | Class I conforming to EN/IEC 61140Class I conforming to NF C 20-030 |
| Local signalling: | Without pilot light |
|---|---|
| Number of cables: | 1 |
| Trigger cable maximum length: | 30 m |
| Body material: | Zamak |
| Cover material: | Stainless steel |
| Reset: | By booted push-button |
| Contacts type and composition: | 1 NC + 1 NO |
| Contact operation: | Slow-break |
| Trigger cable anchor point: | RH or LH side |
| Connections - terminals: | Screw clamp terminal, 1 x 0.5...2 x 1.5 mm² |
| Tightening torque: | 0.8...1.2 N.m |
| Cable entry number: | 3 tapped entry for ISO M20 cable gland |
| Safety level: | Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 |
| Safety reliability data: | B10d = 4000000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear |
| Marking: | CE |
| Mechanical durability: | 800000 cycles |
| Distance between cable supports: | 5 m |
| [Ie] rated operational current: | 3 A at 240 V, AC-15, A300 conforming to EN/IEC 60947-5-1 appendix A0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 10 A |
| [Ui] rated insulation voltage: | 500 V (pollution degree 3) conforming to EN/IEC 60947-1300 V conforming to UL 508 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-1 |
| Positive opening: | With conforming to EN/IEC 60947-5-1 |
| Maximum resistance across terminals: | 25 MOhm conforming to EN/IEC 60255-7 category 325 MOhm conforming to NF C 93-050 method A |
| Short-circuit protection: | 10 A cartridge fuse type gG conforming to EN/IEC 60269 |
| Terminals description ISO n°1: | (13-14)NO(21-22)NC |
| Product weight: | 0.865 kg |
| Compatibility code: | XY2CH |
| Standards: | Work equipment directive 2009/104/ECEN/ISO 13850EN/IEC 60947-5-5EN/IEC 60204-1Machinery directive 2006/42/ECEN/IEC 60947-5-1 |
|---|---|
| Product certifications: | UL category NISD emergency stop devicesCCC |
| Protective treatment: | TC |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 10 gn (f= 10...150 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance: | 50 gn 11 ms conforming to EN/IEC 60068-2-27 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110973501 |
|---|
