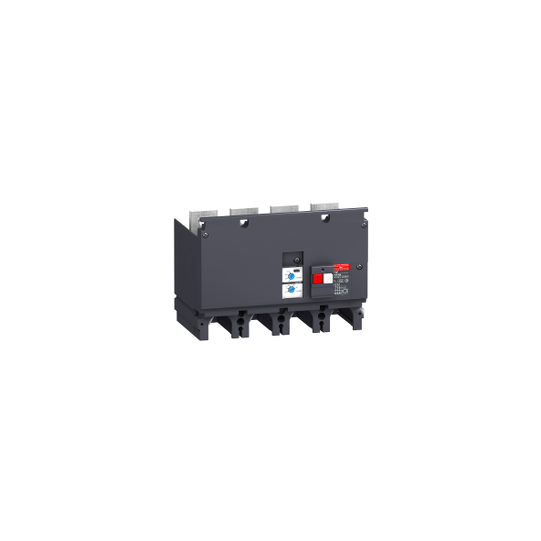

Schneider Electric Compact Earth-leakage add-on protection module, ComPact NSX 400/630, MB type, 440 VAC to 550 VAC, 300 mA to 30 A, 4 poles - LV432454
Schneider Electric Compact Earth-leakage add-on protection module, ComPact NSX 400/630, MB type, 440 VAC to 550 VAC, 300 mA to 30 A, 4 poles - LV432454

Earth-leakage add-on protection module, ComPact NSX 400/630, MB type, 440 VAC to 550 VAC, 300 mA to 30 A, 4 poles - LV432454

SKU : LV432454

Regular price €0,00


/

Contact us for price and lead time for this product. Our team will respond quickly.



We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.

Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.

We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation

Earth-leakage add-on protection module, ComPact NSX 400/630, MB type, 440 VAC to 550 VAC, 300 mA to 30 A, 4 poles - LV432454

DESCRIPTION

  • Main
    • range of product : ComPact NSX400...630
    • range : ComPact
    • product or component type : Vigi add-on
    • device application : Wiring
    • range compatibility : ComPact NSX400 circuit breaker
      ComPact NSX630 circuit breaker
    • poles description : 4P
    • [In] rated current : 400 A
      630 A
    • earth-leakage add-on module name : MB
    • earth-leakage protection class : Class A
    • residual earth-leakage sensitity adjustment type : Adjustable 5 settings
    • earth-leakage sensitivity : 0.3 A
      1 A
      3 A
      10 A
      30 A
    • residual earth-leakage time delay adjustment type : Adjustable 4 settings
    • [Δt] residual earth-leakage time delay adjustment : 60 ms
      150 ms
      310 ms
      0 ms
  • Complementary
    • network type : AC
    • network frequency : 50/60 Hz
    • [Ue] rated operational voltage : 440...550 V AC 50/60 Hz conforming to IEC 60947-2
    • earth-leakage protection : With
    • maximum breaking time : 800 ms
    • overvoltage category : Class II
  • Environment
    • electrical shock protection class : Class II
    • standards : IEC 60947-2
  • Offer Sustainability
    • REACh Regulation : Free of Substances of Very High Concern above the threshold
    • EU RoHS Directive : Compliant
    • Mercury free : Yes
    • RoHS exemption information : Yes
    • China RoHS Regulation : Product out of China RoHS scope. Substance declaration for your information
Code EAN: 3606480018831
