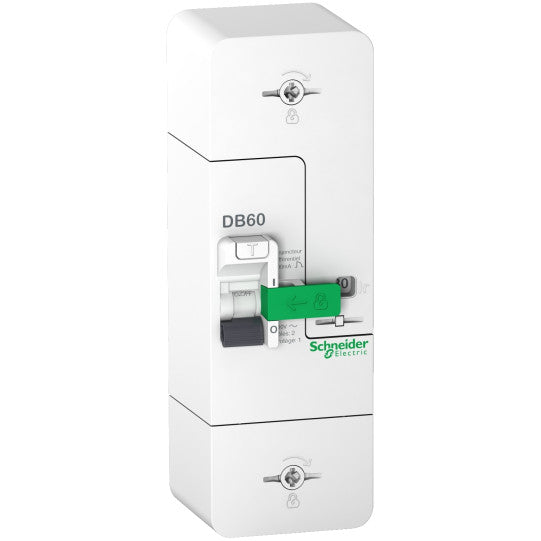

Earth leakage circuit breaker for service connection DB60 - 1P+N - 60A - 500mA S - R9FS660
SKU : R9FS660
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Earth leakage circuit breaker for service connection DB60 - 1P+N - 60A - 500mA S - R9FS660
DESCRIPTION
| Circuit breaker application: | Distribution |
|---|---|
| Range: | Resi9 |
| Range of product: | DB60 |
| Product name: | DB60 |
| Product or component type: | Residual current breaker with overcurrent protection (RCBO) |
| Device location in system: | Main incomer |
| Poles description: | 1P + N |
| [In] rated current: | 60 A |
| Type of setting: | 60 A 12 kVA |
| Earth-leakage sensitivity: | 500 mA |
| Earth-leakage protection time delay: | Selective |
| Earth-leakage protection class: | Type A |
| Neutral position: | Left |
| Standards: | NF C 62-411 |
| Product certifications: | ERDF CPT M&S SPE 11015B |
| Quality labels: | NF |
| Electrical insulation class: | Class II |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Function available: | Cover opening open |
| Network frequency: | 50 Hz |
|---|---|
| [Ue] rated operational voltage: | 250 V AC 50 Hz conforming to NF C 62-411 |
| Residual current tripping technology: | Voltage independent |
| Breaking capacity: | 2.4 kA |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Mounting support: | Mounting plate |
| Height: | 209 mm |
| Width: | 71 mm |
| Depth: | 73 mm |
| Mechanical durability: | 5000 cycles |
| Electrical durability: | 1000 cycles conforming to NF C 62-411 |
| Provision for padlocking: | Padlockable with padlock Ø 6 mm |
| Locking options description: | Padlocking in OFF position |
| Connections - terminals: | Orientational terminals 30°, cable cross section: 2.5...25 mm² |
| Tightening torque: | Power terminals: 4 N.mSetting: 1 N.m |
| Earth-leakage protection: | Integrated |
| Market segment: | Residential |
| Targeted country: | France |
| IP degree of protection: | IP40 (front face) |
|---|---|
| Electromagnetic compatibility: | Electrostatic discharge - test level: 15 kV (air discharge) conforming to IEC 61000-4-2Electrostatic discharge - test level: 8 kV (contact discharge) conforming to IEC 61000-4-3Radiated radio-frequency electromagnetic field immunity test - test level: 20 V/m criteria A (80 MHz...6 GHz) conforming to IEC 61000-4-4Electrical fast transient/burst immunity test - test level: 4.5 kV criteria A conforming to IEC 61000-4-5Surge immunity test - test level: 5 kV criteria A (common mode) conforming to IEC 61000-4-6Surge immunity test - test level: 5 kV criteria A (differential mode) conforming to IEC 61000-4-8Conducted RF disturbances - test level: 20 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-16Magnetic field at power frequency - test level: 400 A/m criteria A (1 minute) conforming to EN 55022-11Magnetic field at power frequency - test level: 1000 A/m criteria A (3 s) conforming to EN 55022-11 |
| Relative humidity: | 90 % at 40 °C |
| Ambient air temperature for operation: | -20...55 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480943447 |
|---|
