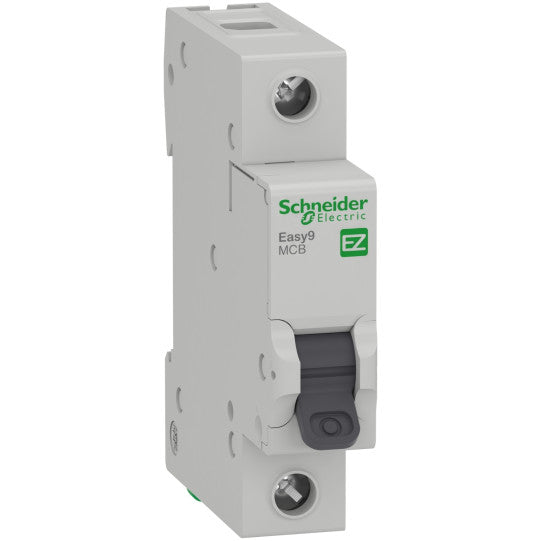

Easy9 miniature circuit breaker- 1P - 10 A - C curve - 6000 A - 230 V - EZ9F56110
SKU : EZ9F56110
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Easy9 miniature circuit breaker- 1P - 10 A - C curve - 6000 A - 230 V - EZ9F56110
DESCRIPTION
| Feature | Detail |
|---|---|
| Range | Easy9 |
| Device application | Distribution |
| Product or component type | Miniature circuit breaker |
| Device short name | Easy9 MCB |
| Poles | 1P |
| Number of protected poles | 1 |
| Rated current [In] | 10 A |
| Network type | AC |
| Tripping technology | Thermal-magnetic |
| Curve | C |
| Breaking capacity | 6000 A Icn at 230 V AC 50/60 Hz according to IEC 60898-1 - 10000 A Icn at 127 V AC 50/60 Hz according to IEC 60898-1 |
| Switching capability | Yes according to IEC 60898-1 |
| Network frequency | 50 Hz |
| Rated operational voltage [Ue] | 230 V AC 50 Hz - 127 V AC 50 Hz |
| Magnetic trip threshold | 5...10 x In |
| Rated service breaking capacity [Ics] | 6 kA 100 % x Icn at 230 V AC 50/60 Hz according to IEC 60898-1 |
| Rated insulation voltage [Ui] | 500 V AC 50/60 Hz according to IEC 60898-1 |
| Impulse withstand voltage [Uimp] | 4 kV according to IEC 60898-1 |
| Contact position indicator | Yes |
| Control type | Toggle |
| Local signaling | None |
| Mounting mode | Snap-on |
| Mounting support | DIN rail |
| 9 mm pitch | 2 |
| Height | 81 mm |
| Width | 18 mm |
| Depth | 66.5 mm |
| Color | Grey (RAL 7035) |
| Mechanical lifespan | 10000 operations |
| Electrical lifespan | 4000 operations |
| Connections – terminals | Terminal block (top or bottom) 1…25 mm² rigid - Terminal block (top or bottom) 1…16 mm² flexible |
| Tightening torque | 2 N.m top or bottom |
| Standards | IEC 60898-1 |
| Product certifications | VDE - CE |
| IP protection rating | IP20 according to IEC 60529 |
| Pollution degree | 2 |
| Tropicalization | 2 |
| Relative humidity | 95 % at -5…60 °C |
| Operating ambient temperature | -5…60 °C |
| Storage ambient temperature | -40…85 °C |
| Range: | Easy9 |
|---|---|
| Device application: | Distribution |
| Product or component type: | Miniature circuit-breaker |
| Device short name: | Easy9 MCB |
| Poles: | 1P |
| Number of protected poles: | 1 |
| [In] rated current: | 10 A |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Breaking capacity: | 6000 A Icn at 230 V AC 50/60 Hz conforming to IEC 60898-1 10000 A Icn at 127 V AC 50/60 Hz conforming to IEC 60898-1 |
| Suitability for isolation: | Yes conforming to IEC 60898-1 |
| Network frequency: | 50 Hz [Ue] rated operational voltage |
